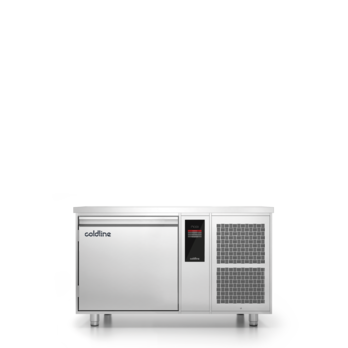

Arkis Modi Up Blast Chiller Counter
WHP7UR-760
Arkis Modi Up Blast Chiller Counter
-40°+10°C
7 GN-EN trays, with top, h 760 mm
remote
-40°+10°C
7 GN-EN trays, with top, h 760 mm
remote
Features
- Functions Blast chilling, shock freezing, continuous cycle
- Standard equipment 7 slides GN1/1, EN60x40
- Control 4,3" touch screen display with USB port
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304, quick release
- Top Thickness 4 cm. Reinforced in order to place an oven
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 248 lt
- Temperature range -40°+10°C
- Refrigerant unit remote
- Energetic class /
- Yield +90/+3 32 Kg
- Yield +90/-18 24 Kg
- Cooling gas R290 (GWP=3)
- Defrost Hot gas
- Body height 760 mm
- Valve Electronic expansion valve
- Dimensions 1400×700×810 mm
- Packing dimensions 1545×900×998 mm
- Net / gross weight 125 Kg / 135 Kg
- Net / gross volume / 248 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 150 W - 0,72 A
- Cooling capacity 2368 W*
- * Evap. -10°C Cond. +45°C
- Pipe delivery 10 mm
- Pipe suction 10 mm
