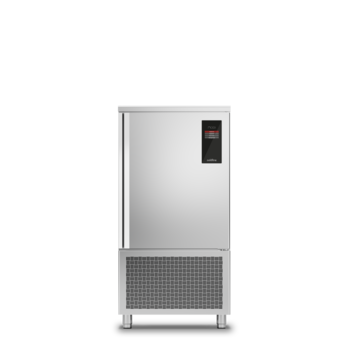

Modi Active Blast Chiller
W10ALR
Modi Active Blast Chiller
-40°+65°C
10 trays EN60x40 ice cream
remote
-40°+65°C
10 trays EN60x40 ice cream
remote
Features
- Functions Blast chilling, shock freezing, thawing, proving, holding, desiccation, chocolate, manual cycle
- Standard equipment 3 slides EN60x40, 3 plastic coated EN60x40 shelves
- Control 4,3" touch screen display with USB port
- Doors Cushioned, with anti-odor system
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304, quick release
- Top 4 cm thickness
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Max capacity 12 basins 360x165x150 mm or 12 ice cream containers Ø 200x200x125 mm
- Gross capacity 367 lt
- Temperature range -40°+65°C
- Refrigerant unit remote
- Yield +90/+3 50 Kg
- Yield +90/-18 45 Kg
- Cooling gas R452a
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 780×800×1563 mm
- Packing dimensions 875×915×1826 mm
- Gross weight 140 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 1210 W
- Absorbed Current 5,85 A
- Cooling capacity 5440 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Remote condensing unit W10-W14T
- Silenced faired remote condensing unit W10-W14T
- Lowered foot h 55/70 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 398 mm EN
- Sterilizing UV lamp
Variants
- RAL customisable colouring
- Sonda al cuore a 3 punti di lettura
- Sonda al cuore riscaldata a 1 punto di lettura
- Reverse door opening from standard
- Alimentazione frequenza 60Hz
- Alimentazione Trifase 50Hz oppure 60Hz
- Other special voltage
