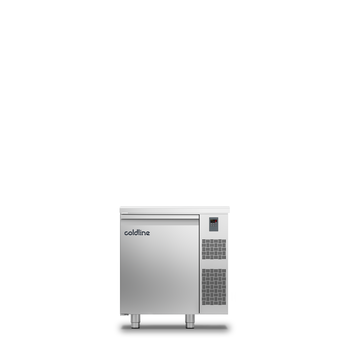

Pastry EN60x40 counter 1 door
TP09/1BJR-760
Pastry EN60x40 counter 1 door
-15°-22°C
with top h. 760 mm
remote
-15°-22°C
with top h. 760 mm
remote
Features
- Standard equipment 4 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 1 door, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 185 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a
- Defrost Electric
- Body height 760 mm
- Valve Supplied standard with solenoid
- Dimensions 755×800×900 mm
- Packing dimensions 990×900×998 mm
- Gross weight 83 Kg
- Voltage 220-240 V - 50-60 Hz
- Total rate 765 W
- Absorbed Current 3,5 A
- Cooling capacity 540 W*
- * Evap. -30°C Cond. +55°C
Accessories
- Remote condensing unit NT2178GK
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Removable plinth EN 1DR h 50 mm
- Removable plinth EN 1DR h 100 mm
- Removable plinth EN 1DR h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Common technical compartment
- Counters without a technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Predisposition for connection to CO2 remote control unit
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
