2 doors remote 130

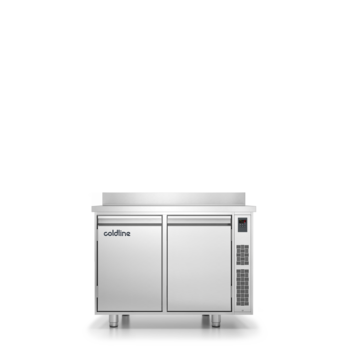

Arkis GN counter 2 doors
HA13/1BR-710
Arkis GN counter 2 doors
-15°-22°C
top with splashback h. 710 mm
remote with 130 mm technical compartment
-15°-22°C
top with splashback h. 710 mm
remote with 130 mm technical compartment
Features
- Standard equipment 2 slides, 2 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 2 doors with 180° opening
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top and splashback
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 280 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 710 mm
- Valve Supplied standard with solenoid
- Dimensions 1090×700×950 mm
- Packing dimensions 1395×800×998 mm
- Net / gross weight 110 Kg / 120 Kg
- Net / gross volume 183 lt / 280 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 920W - 4,2A
- Cooling capacity 540 W*
- * Evap. -30°C Cond. +55°C
- Pipe delivery Ø 3/8"
- Pipe suction Ø 3/8"

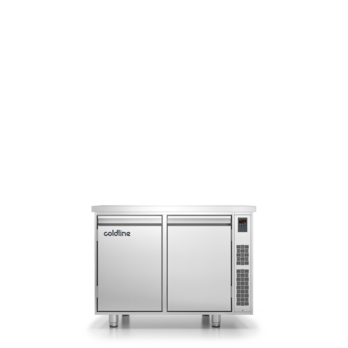

Arkis GN counter 2 doors
HP13/1BR-710
Arkis GN counter 2 doors
-15°-22°C
with top h. 710 mm
remote with 130 mm technical compartment
-15°-22°C
with top h. 710 mm
remote with 130 mm technical compartment
Features
- Standard equipment 2 slides, 2 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 2 doors with 180° opening
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 280 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 710 mm
- Valve Supplied standard with solenoid
- Dimensions 1090×700×850 mm
- Packing dimensions 1395×800×998 mm
- Net / gross weight 105 Kg / 115 Kg
- Net / gross volume 183 lt / 280 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 920W - 4,2A
- Cooling capacity 540 W*
- * Evap. -30°C Cond. +55°C
- Pipe delivery Ø 3/8"
- Pipe suction Ø 3/8"

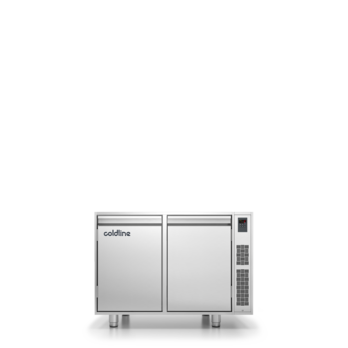

Arkis GN counter 2 doors
HS13/1BR-710
Arkis GN counter 2 doors
-15°-22°C
without top h. 710 mm
remote with 130 mm technical compartment
-15°-22°C
without top h. 710 mm
remote with 130 mm technical compartment
Features
- Standard equipment 2 slides, 2 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 2 doors with 180° opening
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top Without top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 280 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 710 mm
- Valve Supplied standard with solenoid
- Dimensions 1090×655×810 mm
- Packing dimensions 1395×800×998 mm
- Net / gross weight 90 Kg / 100 Kg
- Net / gross volume 183 lt / 280 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 920W - 4,2A
- Cooling capacity 540 W*
- * Evap. -30°C Cond. +55°C
- Pipe delivery Ø 3/8"
- Pipe suction Ø 3/8"
Arkis GN counter 2 doors
HA13/1BR-760
Arkis GN counter 2 doors
-15°-22°C
top with splashback h. 760 mm
remote with 130 mm technical compartment
-15°-22°C
top with splashback h. 760 mm
remote with 130 mm technical compartment
Features
- Standard equipment 2 slides, 2 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 2 doors with 180° opening
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top and splashback
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 303 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 760 mm
- Valve Supplied standard with solenoid
- Dimensions 1090×700×1000 mm
- Packing dimensions 1395×800×998 mm
- Net / gross weight 116 Kg / 126 Kg
- Net / gross volume 200 lt / 303 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 920W - 4,2A
- Cooling capacity 540 W*
- * Evap. -30°C Cond. +55°C
- Pipe delivery Ø 3/8"
- Pipe suction Ø 3/8"
Arkis GN counter 2 doors
HP13/1BR-760
Arkis GN counter 2 doors
-15°-22°C
with top h. 760 mm
remote with 130 mm technical compartment
-15°-22°C
with top h. 760 mm
remote with 130 mm technical compartment
Features
- Standard equipment 2 slides, 2 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 2 doors with 180° opening
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 303 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 760 mm
- Valve Supplied standard with solenoid
- Dimensions 1090×700×900 mm
- Packing dimensions 1395×800×998 mm
- Net / gross weight 111 Kg / 121 Kg
- Net / gross volume 200 lt / 303 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 920W - 4,2A
- Cooling capacity 540 W*
- * Evap. -30°C Cond. +55°C
- Pipe delivery Ø 3/8"
- Pipe suction Ø 3/8"
Arkis GN counter 2 doors
HS13/1BR-760
Arkis GN counter 2 doors
-15°-22°C
without top h. 760 mm
remote with 130 mm technical compartment
-15°-22°C
without top h. 760 mm
remote with 130 mm technical compartment
Features
- Standard equipment 2 slides, 2 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 2 doors with 180° opening
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top Without top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 303 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 760 mm
- Valve Supplied standard with solenoid
- Dimensions 1090×655×860 mm
- Packing dimensions 1395×800×998 mm
- Net / gross weight 96 Kg / 106 Kg
- Net / gross volume 200 lt / 303 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 920W - 4,2A
- Cooling capacity 540 W*
- * Evap. -30°C Cond. +55°C
- Pipe delivery Ø 3/8"
- Pipe suction Ø 3/8"
