20 trays

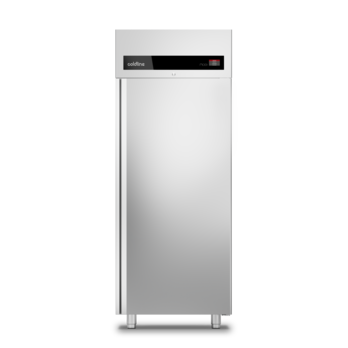

Modi Up Blast Chiller
W20U
Modi Up Blast Chiller
-40°+10°C
20 trays GN-EN
Plug-in air unit
-40°+10°C
20 trays GN-EN
Plug-in air unit
Features
- Functions Blast chilling, shock freezing, continuous cycle
- Standard equipment 20 slides GN1/1, EN60x40
- Control 4,3" touch screen display with USB port
- Doors Cushioned, with anti-odor system
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304, quick release
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 872 lt
- Temperature range -40°+10°C
- Refrigerant unit Plug-in
- Yield +90/+3 88 Kg
- Yield +90/-18 62 Kg
- Climate class 5
- Cooling gas R452a
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 810×1015×2210 mm
- Packing dimensions 905×1130×2365 mm
- Gross weight 225 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 6450 W
- Absorbed Current 12,45 A
- Cooling capacity 7751 W*
- * Evap. -10°C Cond. +45°C
Accessories
- 4 Swivel and brake castors h 128 mm
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 398 mm GN-EN
- Sterilizing UV lamp
Variants
- RAL customisable colouring
- Sonda al cuore a 3 punti di lettura
- Sonda al cuore riscaldata a 1 punto di lettura
- Reverse door opening from standard
- Alimentazione Monofase 50Hz oppure 60Hz
- Alimentazione Trifase 50Hz oppure 60Hz
- Alimentazione frequenza 60Hz
- Other special voltage
Modi Up Blast Chiller
W20UR
Modi Up Blast Chiller
-40°+10°C
20 trays GN-EN
remote
-40°+10°C
20 trays GN-EN
remote
Features
- Functions Blast chilling, shock freezing, continuous cycle
- Standard equipment 20 slides GN1/1, EN60x40
- Control 4,3" touch screen display with USB port
- Doors Cushioned, with anti-odor system
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304, quick release
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 872 lt
- Temperature range -40°+10°C
- Refrigerant unit remote
- Yield +90/+3 88 Kg
- Yield +90/-18 62 Kg
- Cooling gas R452a
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 810×1015×2085 mm
- Packing dimensions 905×1130×2240 mm
- Gross weight 190 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 610 W
- Absorbed Current 1,16 A
- Cooling capacity 7751 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Open remote condensing unit W20T
- Silenced faired remote condensing unit W20T
- 4 Swivel and brake castors h 128 mm
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 398 mm GN-EN
- Sterilizing UV lamp
Variants
- RAL customisable colouring
- Sonda al cuore a 3 punti di lettura
- Sonda al cuore riscaldata a 1 punto di lettura
- Reverse door opening from standard
- Predisposition for connection to CO2 remote control unit
- Alimentazione Monofase 50Hz oppure 60Hz
- Alimentazione Trifase 50Hz oppure 60Hz
- Alimentazione frequenza 60Hz
- Other special voltage
Modi Up Blast Chiller
W20UE
Modi Up Blast Chiller
-40°+10°C
20 trays EN60x40
Plug-in air unit
-40°+10°C
20 trays EN60x40
Plug-in air unit
Features
- Functions Blast chilling, shock freezing, continuous cycle
- Standard equipment 20 slides EN60x40
- Control 4,3" touch screen display with USB port
- Doors Cushioned, with anti-odor system
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304, quick release
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 872 lt
- Temperature range -40°+10°C
- Refrigerant unit Plug-in
- Yield +90/+3 88 Kg
- Yield +90/-18 62 Kg
- Climate class 5
- Cooling gas R452a
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 810×1015×2210 mm
- Packing dimensions 905×1130×2365 mm
- Gross weight 225 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 6450 W
- Absorbed Current 12,45 A
- Cooling capacity 7751 W*
- * Evap. -10°C Cond. +45°C
Accessories
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 398 mm EN
- Sterilizing UV lamp
Variants
- RAL customisable colouring
- Sonda al cuore a 3 punti di lettura
- Sonda al cuore riscaldata a 1 punto di lettura
- Reverse door opening from standard
- Alimentazione Monofase 50Hz oppure 60Hz
- Alimentazione Trifase 50Hz oppure 60Hz
- Alimentazione frequenza 60Hz
- Other special voltage
Modi Up Blast Chiller
W20UER
Modi Up Blast Chiller
-40°+10°C
20 trays EN60x40
remote
-40°+10°C
20 trays EN60x40
remote
Features
- Functions Blast chilling, shock freezing, continuous cycle
- Standard equipment 20 slides EN60x40
- Control 4,3" touch screen display with USB port
- Doors Cushioned, with anti-odor system
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304, quick release
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 872 lt
- Temperature range -40°+10°C
- Refrigerant unit remote
- Yield +90/+3 88 Kg
- Yield +90/-18 62 Kg
- Cooling gas R452a
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 810×1015×2085 mm
- Packing dimensions 905×1130×2240 mm
- Gross weight 190 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 460 W
- Absorbed Current 2,22 A
- Cooling capacity 7751 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Open remote condensing unit W20T
- Silenced faired remote condensing unit W20T
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 398 mm EN
- Sterilizing UV lamp
Variants
- RAL customisable colouring
- Sonda al cuore a 3 punti di lettura
- Sonda al cuore riscaldata a 1 punto di lettura
- Reverse door opening from standard
- Predisposition for connection to CO2 remote control unit
- Alimentazione Monofase 50Hz oppure 60Hz
- Alimentazione Trifase 50Hz oppure 60Hz
- Alimentazione frequenza 60Hz
- Other special voltage
Modi Up Blast Chiller
W20UL
Modi Up Blast Chiller
-40°+10°C
20 trays EN60x40 ice cream
Plug-in air unit
-40°+10°C
20 trays EN60x40 ice cream
Plug-in air unit
Features
- Functions Blast chilling, shock freezing, continuous cycle
- Standard equipment 6 slides EN60x40, 6 plastic coated EN60x40 shelves
- Control 4,3" touch screen display with USB port
- Doors Cushioned, with anti-odor system
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304, quick release
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Max capacity 21 basins 360x165x150 mm or 21 ice cream containers Ø 200x200x125 mm
- Gross capacity 872 lt
- Temperature range -40°+10°C
- Refrigerant unit Plug-in
- Yield +90/+3 88 Kg
- Yield +90/-18 62 Kg
- Climate class 5
- Cooling gas R452a
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 810×1015×2210 mm
- Packing dimensions 905×1130×2365 mm
- Gross weight 230 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 6450 W
- Absorbed Current 12,45 A
- Cooling capacity 7751 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Lowered foot h 55/70 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 398 mm EN
- Sterilizing UV lamp
Variants
- RAL customisable colouring
- Sonda al cuore a 3 punti di lettura
- Sonda al cuore riscaldata a 1 punto di lettura
- Reverse door opening from standard
- Alimentazione Monofase 50Hz oppure 60Hz
- Alimentazione Trifase 50Hz oppure 60Hz
- Alimentazione frequenza 60Hz
- Other special voltage
Modi Up Blast Chiller
W20ULR
Modi Up Blast Chiller
-40°+10°C
20 trays EN60x40 ice cream
remote
-40°+10°C
20 trays EN60x40 ice cream
remote
Features
- Functions Blast chilling, shock freezing, continuous cycle
- Standard equipment 6 slides EN60x40, 6 plastic coated EN60x40 shelves
- Control 4,3" touch screen display with USB port
- Doors Cushioned, with anti-odor system
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304, quick release
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Max capacity 21 basins 360x165x150 mm or 21 ice cream containers Ø 200x200x125 mm
- Gross capacity 872 lt
- Temperature range -40°+10°C
- Refrigerant unit remote
- Yield +90/+3 88 Kg
- Yield +90/-18 62 Kg
- Cooling gas R452a
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 810×1015×2085 mm
- Packing dimensions 905×1130×2240 mm
- Gross weight 195 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 460 W
- Absorbed Current 2,22 A
- Cooling capacity 7751 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Open remote condensing unit W20T
- Silenced faired remote condensing unit W20T
- Lowered foot h 55/70 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 398 mm EN
- Sterilizing UV lamp
Variants
- RAL customisable colouring
- Sonda al cuore a 3 punti di lettura
- Sonda al cuore riscaldata a 1 punto di lettura
- Reverse door opening from standard
- Predisposition for connection to CO2 remote control unit
- Alimentazione Monofase 50Hz oppure 60Hz
- Alimentazione Trifase 50Hz oppure 60Hz
- Alimentazione frequenza 60Hz
- Other special voltage
