3 doors remote 200

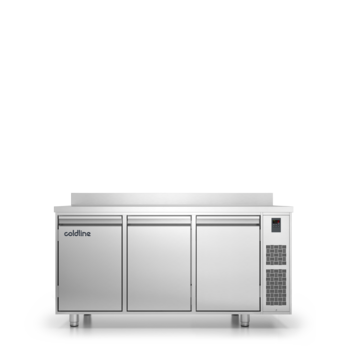

Arkis GN counter 3 doors

HA17/1MR-SVT200-710
Arkis GN counter 3 doors
-2°+8°C
top with splashback h. 710 mm
remote with 200 mm technical compartment
-2°+8°C
top with splashback h. 710 mm
remote with 200 mm technical compartment
Features
- Standard equipment 3 slides, 3 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 3 doors with 180° opening
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top and splashback
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 440 lt
- Temperature range -2°+8°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 710 mm
- Valve Supplied standard with solenoid
- Dimensions 1570×700×950 mm
- Packing dimensions 1875×800×998 mm
- Net / gross weight 150 Kg / 160 Kg
- Net / gross volume 274 lt / 440 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 810W - 3,7A
- Cooling capacity 668 W*
- * Evap. -10°C Cond. +55°C
- Pipe delivery Ø 1/4"
- Pipe suction Ø 3/8"

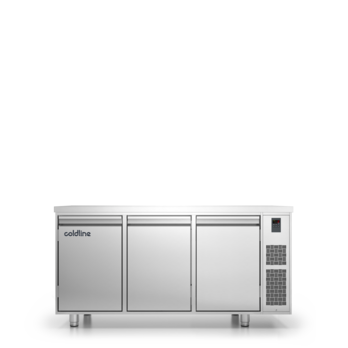

Arkis GN counter 3 doors

HP17/1MR-SVT200-710
Arkis GN counter 3 doors
-2°+8°C
with top h. 710 mm
remote with 200 mm technical compartment
-2°+8°C
with top h. 710 mm
remote with 200 mm technical compartment
Features
- Standard equipment 3 slides, 3 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 3 doors with 180° opening
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 440 lt
- Temperature range -2°+8°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 710 mm
- Valve Supplied standard with solenoid
- Dimensions 1570×700×850 mm
- Packing dimensions 1875×800×998 mm
- Net / gross weight 145 Kg / 155 Kg
- Net / gross volume 274 lt / 440 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 810W - 3,7A
- Cooling capacity 668 W*
- * Evap. -10°C Cond. +55°C
- Pipe delivery Ø 1/4"
- Pipe suction Ø 3/8"

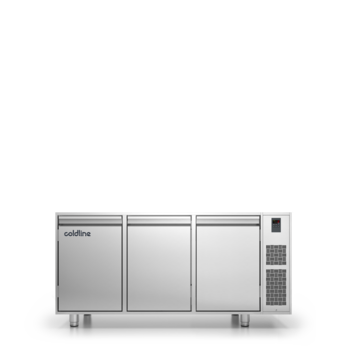

Arkis GN counter 3 doors

HS17/1MR-SVT200-710
Arkis GN counter 3 doors
-2°+8°C
without top h. 710 mm
remote with 200 mm technical compartment
-2°+8°C
without top h. 710 mm
remote with 200 mm technical compartment
Features
- Standard equipment 3 slides, 3 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 3 doors with 180° opening
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top Without top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 440 lt
- Temperature range -2°+8°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 710 mm
- Valve Supplied standard with solenoid
- Dimensions 1570×655×810 mm
- Packing dimensions 1875×800×998 mm
- Net / gross weight 115 Kg / 125 Kg
- Net / gross volume 274 lt / 440 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 810W - 3,7A
- Cooling capacity 668 W*
- * Evap. -10°C Cond. +55°C
- Pipe delivery Ø 1/4"
- Pipe suction Ø 3/8"
Arkis GN counter 3 doors

HA17/1MR-SVT200-760
Arkis GN counter 3 doors
-2°+8°C
top with splashback h. 760 mm
remote with 200 mm technical compartment
-2°+8°C
top with splashback h. 760 mm
remote with 200 mm technical compartment
Features
- Standard equipment 3 slides, 3 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 3 doors with 180° opening
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top and splashback
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 476 lt
- Temperature range -2°+8°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 760 mm
- Valve Supplied standard with solenoid
- Dimensions 1570×700×1000 mm
- Packing dimensions 1875×800×998 mm
- Net / gross weight 159 Kg / 169 Kg
- Net / gross volume 300 lt / 476 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 810W - 3,7A
- Cooling capacity 668 W*
- * Evap. -10°C Cond. +55°C
- Pipe delivery Ø 1/4"
- Pipe suction Ø 3/8"
Arkis GN counter 3 doors

HP17/1MR-SVT200-760
Arkis GN counter 3 doors
-2°+8°C
with top h. 760 mm
remote with 200 mm technical compartment
-2°+8°C
with top h. 760 mm
remote with 200 mm technical compartment
Features
- Standard equipment 3 slides, 3 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 3 doors with 180° opening
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 476 lt
- Temperature range -2°+8°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 760 mm
- Valve Supplied standard with solenoid
- Dimensions 1570×700×900 mm
- Packing dimensions 1875×800×998 mm
- Net / gross weight 154 Kg / 164 Kg
- Net / gross volume 300 lt / 476 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 810W - 3,7A
- Cooling capacity 668 W*
- * Evap. -10°C Cond. +55°C
- Pipe delivery Ø 1/4"
- Pipe suction Ø 3/8"
Arkis GN counter 3 doors

HS17/1MR-SVT200-760
Arkis GN counter 3 doors
-2°+8°C
without top h. 760 mm
remote with 200 mm technical compartment
-2°+8°C
without top h. 760 mm
remote with 200 mm technical compartment
Features
- Standard equipment 3 slides, 3 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 3 doors with 180° opening
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top Without top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 476 lt
- Temperature range -2°+8°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 760 mm
- Valve Supplied standard with solenoid
- Dimensions 1570×655×860 mm
- Packing dimensions 1875×800×998 mm
- Net / gross weight 124 Kg / 134 Kg
- Net / gross volume 300 lt / 476 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 810W - 3,7A
- Cooling capacity 668 W*
- * Evap. -10°C Cond. +55°C
- Pipe delivery Ø 1/4"
- Pipe suction Ø 3/8"
