Cabinet 30 trays

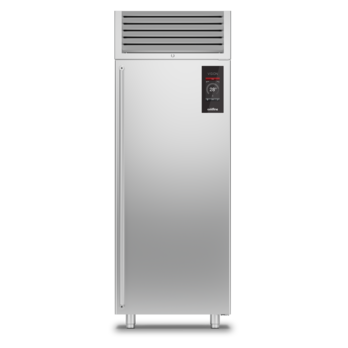

Vision F30 cabinet
AF30/1M
Vision F30 cabinet
-6°+40°C RH 45÷95%
1 door
-6°+40°C RH 45÷95%
1 door
Features
- Functions Retarder prover, manual proving, continuous cycle, storage, chocolate, thawing, ice cream
- Standard equipment 20 slides for EN60x40 trays, LED lighting
- Control 7" touch screen display with USB port
- Doors 1 door, self-closing with a 105° stop, right hinged
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 75 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel. Back, base and internal technical compartment in galvanized/colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle In AISI 304 stainless steel
- Racks and slides Stainless steel AISI 304
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Max capacity 33 trays E
- Gross capacity 622 lt
- Temperature range -6°+40°C
- Refrigerant unit Plug-in
- Energetic class E
- Energy efficiency index 78,2
- Annual consumption 918 kW/h annum
- 24h consumption 2,515 kW/h/24h
- Climate class 5
- Cooling gas R290 (GWP=3)
- Refrigerant Charge 120 g
- Defrost Electric
- Valve Supplied standard with solenoid
- Dimensions 810×796×2215 mm
- Packing dimensions 905×850×2138 mm
- Net / gross weight 180 Kg / 190 Kg
- Net / gross volume 344 lt / 622 lt
- Voltage 220-240 V - 50 Hz
- Total rate 1020W - 4,7A
- Cooling capacity 668 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Purity C Quell ST 50 filter cartridge
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 398 mm EN
- Serial interface, RS485 cable
Variants
- RAL customisable colouring
- Plug-in water unit
- Alimentazione frequenza 60Hz
- Other special voltage
Vision F30 cabinet
AF30/1MR
Vision F30 cabinet
-6°+40°C RH 45÷95%
1 door remote
-6°+40°C RH 45÷95%
1 door remote
Features
- Functions Retarder prover, manual proving, continuous cycle, storage, chocolate, thawing, ice cream
- Standard equipment 20 slides for EN60x40 trays, LED lighting
- Control 7" touch screen display with USB port
- Doors 1 door, self-closing with a 105° stop, right hinged
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 75 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel. Back, base and internal technical compartment in galvanized/colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle In AISI 304 stainless steel
- Racks and slides Stainless steel AISI 304
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Max capacity 33 trays E
- Gross capacity 622 lt
- Temperature range -6°+40°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Valve Supplied standard with solenoid
- Dimensions 810×796×2215 mm
- Packing dimensions 905×850×2138 mm
- Net / gross weight 170 Kg / 180 Kg
- Net / gross volume 344 lt / 622 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 790W - 3,6A
- Cooling capacity 668 W*
- * Evap. -10°C Cond. +55°C
- Pipe delivery Ø 1/4"
- Pipe suction Ø 3/8"
Accessories
- Remote condensing unit NEK6210GK
- Purity C Quell ST 50 filter cartridge
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 398 mm EN
- Serial interface, RS485 cable
Variants
- RAL customisable colouring
- Alimentazione frequenza 60Hz
- Other special voltage
Vision F30 cabinet
AF30/1T
Vision F30 cabinet
-30°+40°C RH 45÷95%
1 door
-30°+40°C RH 45÷95%
1 door
Features
- Functions Retarder prover, manual proving, continuous cycle, storage, chocolate, thawing, ice cream
- Standard equipment 20 slides for EN60x40 trays, LED lighting
- Control 7" touch screen display with USB port
- Doors 1 door, self-closing with a 105° stop, right hinged
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 75 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel. Back, base and internal technical compartment in galvanized/colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle In AISI 304 stainless steel
- Racks and slides Stainless steel AISI 304
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Max capacity 33 trays E
- Gross capacity 622 lt
- Temperature range -30°+40°C
- Refrigerant unit Plug-in
- Energetic class D
- Energy efficiency index 73
- Annual consumption 2312 kW/h annum
- 24h consumption 6,334 kW/h/24h
- Climate class 5
- Cooling gas R290 (GWP=3)
- Refrigerant Charge 135 g
- Defrost Hot gas
- Valve Supplied standard with solenoid
- Dimensions 810×796×2215 mm
- Packing dimensions 905×850×2138 mm
- Net / gross weight 190 Kg / 200 Kg
- Net / gross volume 344 lt / 622 lt
- Voltage 220-240 V - 50 Hz
- Total rate 1410W - 6,5A
- Cooling capacity 751 W*
- * Evap. -30°C Cond. +55°C
Accessories
- Purity C Quell ST 50 filter cartridge
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 398 mm EN
- Serial interface, RS485 cable
Variants
- RAL customisable colouring
- Plug-in water unit
- Alimentazione frequenza 60Hz
- Other special voltage
Vision F30 cabinet
AF30/1TR
Vision F30 cabinet
-30°+40°C RH 45÷95%
1 door remote
-30°+40°C RH 45÷95%
1 door remote
Features
- Functions Retarder prover, manual proving, continuous cycle, storage, chocolate, thawing, ice cream
- Standard equipment 20 slides for EN60x40 trays, LED lighting
- Control 7" touch screen display with USB port
- Doors 1 door, self-closing with a 105° stop, right hinged
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 75 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel. Back, base and internal technical compartment in galvanized/colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle In AISI 304 stainless steel
- Racks and slides Stainless steel AISI 304
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Max capacity 33 trays E
- Gross capacity 622 lt
- Temperature range -30°+40°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Valve Supplied standard with solenoid
- Dimensions 810×796×2215 mm
- Packing dimensions 905×850×2138 mm
- Net / gross weight 170 Kg / 180 Kg
- Net / gross volume 344 lt / 622 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 790W - 3,6A
- Cooling capacity 751 W*
- * Evap. -30°C Cond. +55°C
- Pipe delivery Ø 3/8"
- Pipe suction Ø 3/8"
Accessories
- Remote condensing unit NT2192GK
- Purity C Quell ST 50 filter cartridge
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 398 mm EN
- Serial interface, RS485 cable
Variants
- RAL customisable colouring
- Alimentazione frequenza 60Hz
- Other special voltage
