1 door plug-in

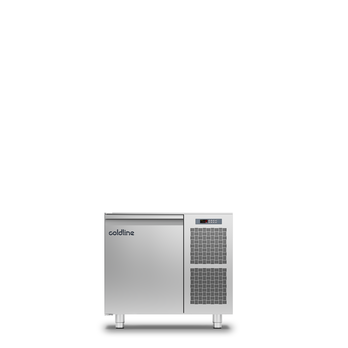

Pastry EN60x40 counter 1 door
TA09/1MJ-710
Pastry EN60x40 counter 1 door
-2°+8°C
top with splashback h. 710 mm
Plug-in
-2°+8°C
top with splashback h. 710 mm
Plug-in
Features
- Standard equipment 4 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 1 door, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top and splashback
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 171 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Energetic class B
- Energy efficiency index 30,2
- Annual consumption 639 kW/h annum
- 24h consumption 1,751 kW/h/24h
- Climate class 5
- Cooling gas R290
- Defrost Hot gas
- Body height 710 mm
- Valve Supplied standard with solenoid
- Dimensions 895×800×950 mm
- Packing dimensions 990×900×998 mm
- Gross weight 115 Kg
- Voltage 220-240 V - 50 Hz
- Total rate 250 W
- Absorbed Current 1,15 A
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- IP44 schuko socket with cover
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Removable plinth EN 1D h 50 mm
- Removable plinth EN 1D h 100 mm
- Removable plinth EN 1D h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Plug-in water unit
- Stainless steel evaporator
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback

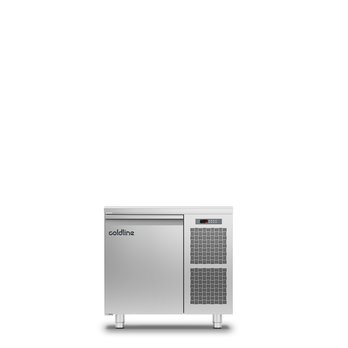

Pastry EN60x40 counter 1 door
TP09/1MJ-710
Pastry EN60x40 counter 1 door
-2°+8°C
with top h. 710 mm
Plug-in
-2°+8°C
with top h. 710 mm
Plug-in
Features
- Standard equipment 4 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 1 door, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 171 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Energetic class B
- Energy efficiency index 30,2
- Annual consumption 639 kW/h annum
- 24h consumption 1,751 kW/h/24h
- Climate class 5
- Cooling gas R290
- Defrost Hot gas
- Body height 710 mm
- Valve Supplied standard with solenoid
- Dimensions 895×800×850 mm
- Packing dimensions 990×900×998 mm
- Gross weight 110 Kg
- Voltage 220-240 V - 50 Hz
- Total rate 250 W
- Absorbed Current 1,15 A
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- IP44 schuko socket with cover
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Removable plinth EN 1D h 50 mm
- Removable plinth EN 1D h 100 mm
- Removable plinth EN 1D h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Plug-in water unit
- Stainless steel evaporator
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
Pastry EN60x40 counter 1 door
TS09/1MJ-710
Pastry EN60x40 counter 1 door
-2°+8°C
without top h. 710 mm
Plug-in
-2°+8°C
without top h. 710 mm
Plug-in
Features
- Standard equipment 4 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 1 door, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top Without top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 171 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Energetic class B
- Energy efficiency index 30,2
- Annual consumption 639 kW/h annum
- 24h consumption 1,751 kW/h/24h
- Climate class 5
- Cooling gas R290
- Defrost Hot gas
- Body height 710 mm
- Valve Supplied standard with solenoid
- Dimensions 895×780×810 mm
- Packing dimensions 990×900×998 mm
- Gross weight 105 Kg
- Voltage 220-240 V - 50 Hz
- Total rate 250 W
- Absorbed Current 1,15 A
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- IP44 schuko socket with cover
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Removable plinth EN 1D h 50 mm
- Removable plinth EN 1D h 100 mm
- Removable plinth EN 1D h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Plug-in water unit
- Stainless steel evaporator
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
Pastry EN60x40 counter 1 door
TA09/1MJ-760
Pastry EN60x40 counter 1 door
-2°+8°C
top with splashback h. 760 mm
Plug-in
-2°+8°C
top with splashback h. 760 mm
Plug-in
Features
- Standard equipment 4 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 1 door, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top and splashback
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 185 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Energetic class B
- Energy efficiency index 32,6
- Annual consumption 699 kW/h annum
- 24h consumption 1,915 kW/h/24h
- Climate class 5
- Cooling gas R290
- Defrost Hot gas
- Body height 760 mm
- Valve Supplied standard with solenoid
- Dimensions 895×800×1000 mm
- Packing dimensions 990×900×998 mm
- Gross weight 118 Kg
- Voltage 220-240 V - 50 Hz
- Total rate 250 W
- Absorbed Current 1,15 A
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- IP44 schuko socket with cover
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Removable plinth EN 1D h 50 mm
- Removable plinth EN 1D h 100 mm
- Removable plinth EN 1D h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Plug-in water unit
- Stainless steel evaporator
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
Pastry EN60x40 counter 1 door
TP09/1MJ-760
Pastry EN60x40 counter 1 door
-2°+8°C
with top h. 760 mm
Plug-in
-2°+8°C
with top h. 760 mm
Plug-in
Features
- Standard equipment 4 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 1 door, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 185 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Energetic class B
- Energy efficiency index 32,6
- Annual consumption 699 kW/h annum
- 24h consumption 1,915 kW/h/24h
- Climate class 5
- Cooling gas R290
- Defrost Hot gas
- Body height 760 mm
- Valve Supplied standard with solenoid
- Dimensions 895×800×900 mm
- Packing dimensions 990×900×998 mm
- Gross weight 113 Kg
- Voltage 220-240 V - 50 Hz
- Total rate 250 W
- Absorbed Current 1,15 A
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- IP44 schuko socket with cover
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Removable plinth EN 1D h 50 mm
- Removable plinth EN 1D h 100 mm
- Removable plinth EN 1D h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Plug-in water unit
- Stainless steel evaporator
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
Pastry EN60x40 counter 1 door
TS09/1MJ-760
Pastry EN60x40 counter 1 door
-2°+8°C
without top h. 760 mm
Plug-in
-2°+8°C
without top h. 760 mm
Plug-in
Features
- Standard equipment 4 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 1 door, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top Without top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 185 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Energetic class B
- Energy efficiency index 32,6
- Annual consumption 699 kW/h annum
- 24h consumption 1,915 kW/h/24h
- Climate class 5
- Cooling gas R290
- Defrost Hot gas
- Body height 760 mm
- Valve Supplied standard with solenoid
- Dimensions 895×780×860 mm
- Packing dimensions 990×900×998 mm
- Gross weight 108 Kg
- Voltage 220-240 V - 50 Hz
- Total rate 250 W
- Absorbed Current 1,15 A
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- IP44 schuko socket with cover
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Removable plinth EN 1D h 50 mm
- Removable plinth EN 1D h 100 mm
- Removable plinth EN 1D h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Plug-in water unit
- Stainless steel evaporator
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
Pastry EN60x40 counter 1 door
TA09/1MJ-660
Pastry EN60x40 counter 1 door
-2°+8°C
top with splashback h. 660 mm
Plug-in
-2°+8°C
top with splashback h. 660 mm
Plug-in
Features
- Standard equipment 4 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 1 door, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top and splashback
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 157 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Energetic class B
- Energy efficiency index 27,7
- Annual consumption 578 kW/h annum
- 24h consumption 1,584 kW/h/24h
- Climate class 5
- Cooling gas R290
- Defrost Hot gas
- Body height 660 mm
- Valve Supplied standard with solenoid
- Dimensions 895×800×900 mm
- Packing dimensions 990×900×998 mm
- Gross weight 112 Kg
- Voltage 220-240 V - 50 Hz
- Total rate 250 W
- Absorbed Current 1,15 A
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- IP44 schuko socket with cover
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Removable plinth EN 1D h 50 mm
- Removable plinth EN 1D h 100 mm
- Removable plinth EN 1D h 150 mm
Variants
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Plug-in water unit
- Stainless steel evaporator
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
- Granite worktop with splashback
Pastry EN60x40 counter 1 door
TP09/1MJ-660
Pastry EN60x40 counter 1 door
-2°+8°C
with top h. 660 mm
Plug-in
-2°+8°C
with top h. 660 mm
Plug-in
Features
- Standard equipment 4 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 1 door, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 157 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Energetic class B
- Energy efficiency index 27,7
- Annual consumption 578 kW/h annum
- 24h consumption 1,584 kW/h/24h
- Climate class 5
- Cooling gas R290
- Defrost Hot gas
- Body height 660 mm
- Valve Supplied standard with solenoid
- Dimensions 895×800×800 mm
- Packing dimensions 990×900×998 mm
- Gross weight 108 Kg
- Voltage 220-240 V - 50 Hz
- Total rate 250 W
- Absorbed Current 1,15 A
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- IP44 schuko socket with cover
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Removable plinth EN 1D h 50 mm
- Removable plinth EN 1D h 100 mm
- Removable plinth EN 1D h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Plug-in water unit
- Stainless steel evaporator
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
Pastry EN60x40 counter 1 door
TS09/1MJ-660
Pastry EN60x40 counter 1 door
-2°+8°C
without top h. 660 mm
Plug-in
-2°+8°C
without top h. 660 mm
Plug-in
Features
- Standard equipment 4 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 1 door, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top Without top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 157 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Energetic class B
- Energy efficiency index 27,7
- Annual consumption 578 kW/h annum
- 24h consumption 1,584 kW/h/24h
- Climate class 5
- Cooling gas R290
- Defrost Hot gas
- Body height 660 mm
- Valve Supplied standard with solenoid
- Dimensions 895×780×760 mm
- Packing dimensions 990×900×998 mm
- Gross weight 102 Kg
- Voltage 220-240 V - 50 Hz
- Total rate 250 W
- Absorbed Current 1,15 A
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- IP44 schuko socket with cover
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Removable plinth EN 1D h 50 mm
- Removable plinth EN 1D h 100 mm
- Removable plinth EN 1D h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Plug-in water unit
- Stainless steel evaporator
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
