1 trolley W35 - W40 - W41 - W50 - W51 - W50L - W54L

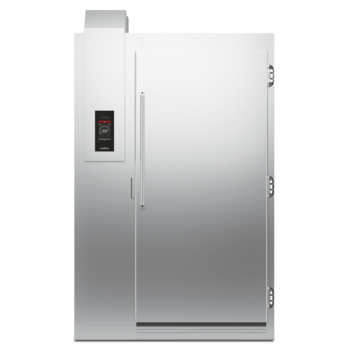

Vision Industry W35K U

W35KUR
Vision Industry W35K U
Trolley blast chiller
Roll-in
remote
Trolley blast chiller
Roll-in
remote
Features
- Functions Blast chilling, shock freezing, continuous cycle
- Control 7" touch screen display with USB port
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing Internal and external in “linen canvas” steel
- Inner corners Rounded base 20 mm
- Handle In AISI 304 stainless steel
Constructive Data
- Max capacity 1 trolley
- Temperature range -40°+10°C
- Refrigerant unit remote
- Yield +90/+3 100 Kg
- Yield +90/-18 80 Kg
- Cooling gas R404/R452
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 1230×1200×2510 mm
- Packing dimensions 1464×1364×2550 mm
- Net / gross weight 300 Kg / 330 Kg
- Net / gross volume /
- Voltage 400-415 V - 50-60 Hz
- Total rate 670 W - 1,25 A
- Cooling capacity 11010 W*
- * Evap. -10°C Cond. +45°C
- Pipe delivery 12 mm
- Pipe suction 28 mm
Accessories
- Open remote condensing unit 4EES-4Y
- Silenced faired remote condensing unit 4EES-4Y + winter kit -20°
- PVC ventilation profiles W35K
- Ramp 100 mm high. Length 913 mm W35
- Ramp 140 mm high. Length 1390 mm W35
- Trolley GN1/1 20 trays 598x530x1630 mm
- Trolley EN60x40 20 trays 460x620x1750 mm
- Purity C Quell ST 50 filter cartridge
- Sanitizing detergent
- Sterilizing UV lamp
Variants
- Abbattitore fornito smontato
- Floor 20 mm high, ramp included
- Reverse door opening from standard
- Door opening turning and control panel inversion
- Door stop 100°
- Sonda al cuore 3 punti di lettura
- Sonda al cuore riscaldata 1 punto di lettura
- Winter kit -20°C
- Winter kit -40°C
- Predisposition for connection to CO2 remote control unit
- Other special voltage

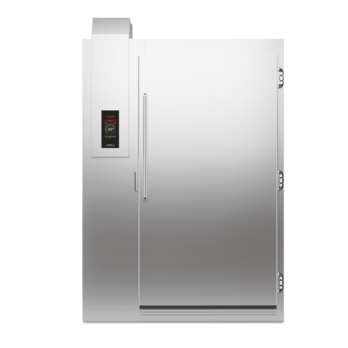

Vision Industry W54LK U

W54LKUR
Vision Industry W54LK U
Trolley blast chiller
Roll-in
remote
Trolley blast chiller
Roll-in
remote
Features
- Functions Blast chilling, shock freezing, continuous cycle
- Control 7" touch screen display with USB port
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing Internal and external in “linen canvas” steel
- Inner corners Rounded base 20 mm
- Handle In AISI 304 stainless steel
Constructive Data
- Max capacity 1 trolley
- Temperature range -40°+10°C
- Refrigerant unit remote
- Yield +90/+3 200 Kg
- Yield +90/-18 160 Kg
- Cooling gas R404/R452
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 1850×1715×2510 mm
- Packing dimensions 1985×1695×2550 mm
- Net / gross weight 483 Kg / 530 Kg
- Net / gross volume /
- Voltage 400-415 V - 50-60 Hz
- Total rate 2270 W - 4,90 A
- Cooling capacity 22980 W*
- * Evap. -10°C Cond. +45°C
- Pipe delivery 12 mm
- Pipe suction 42 mm
Vision Industry W40K U

W40KUR
Vision Industry W40K U
Trolley blast chiller
Roll-in
remote
Trolley blast chiller
Roll-in
remote
Features
- Functions Blast chilling, shock freezing, continuous cycle
- Control 7" touch screen display with USB port
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing Internal and external in “linen canvas” steel
- Inner corners Rounded base 20 mm
- Handle In AISI 304 stainless steel
Constructive Data
- Max capacity 1 trolley
- Temperature range -40°+10°C
- Refrigerant unit remote
- Yield +90/+3 120 Kg
- Yield +90/-18 90 Kg
- Cooling gas R404/R452
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 1480×1430×2510 mm
- Packing dimensions 1620×1700×2550 mm
- Net / gross weight 405 Kg / 440 Kg
- Net / gross volume /
- Voltage 400-415 V - 50-60 Hz
- Total rate 1270 W - 3,14 A
- Cooling capacity 13170 W*
- * Evap. -10°C Cond. +45°C
- Pipe delivery 12 mm
- Pipe suction 35 mm
Accessories
- Open remote condensing unit 4CES-6Y
- Silenced faired remote condensing unit 4CES-6Y
- Faired unit with remote condenser 4CES-6Y
- PVC ventilation profiles W40K
- Ramp 100 mm high. Length 913 mm W40
- Ramp 140 mm high. Length 1390 mm W40
- Trolley GN1/1 20 trays 598x530x1630 mm
- Trolley EN60x40 20 trays 460x620x1750 mm
- Trolley GN2/1 20 trays 660x720x1750 mm
- Trolley EN60x80 20 trays 660x820x1750 mm
- Purity C Quell ST 50 filter cartridge
- Sanitizing detergent
- Sterilizing UV lamp
Variants
- Abbattitore fornito smontato
- Floor 20 mm high, ramp included
- Reverse door opening from standard
- Door opening turning and control panel inversion
- Door stop 100°
- Sonda al cuore 3 punti di lettura
- Sonda al cuore riscaldata 1 punto di lettura
- Winter kit -20°C
- Winter kit -40°C
- Predisposition for connection to CO2 remote control unit
- Other special voltage
Vision Industry W50K U

W50KUR
Vision Industry W50K U
Trolley blast chiller
Roll-in
remote
Trolley blast chiller
Roll-in
remote
Features
- Functions Blast chilling, shock freezing, continuous cycle
- Control 7" touch screen display with USB port
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing Internal and external in “linen canvas” steel
- Inner corners Rounded base 20 mm
- Handle In AISI 304 stainless steel
Constructive Data
- Max capacity 1 trolley
- Temperature range -40°+10°C
- Refrigerant unit remote
- Yield +90/+3 200 Kg
- Yield +90/-18 160 Kg
- Cooling gas R404/R452
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 1600×1430×2510 mm
- Packing dimensions 1734×1694×2550 mm
- Net / gross weight 440 Kg / 480 Kg
- Net / gross volume /
- Voltage 400-415 V - 50-60 Hz
- Total rate 1270 W - 3,14 A
- Cooling capacity 20610 W*
- * Evap. -10°C Cond. +45°C
- Pipe delivery 12 mm
- Pipe suction 42 mm
Accessories
- Open remote condensing unit 4PES-12Y
- Silenced faired remote condensing unit 4PES-12Y
- Faired unit with remote condenser 4PES-12Y
- PVC ventilation profiles W50K
- Ramp 100 mm high. Length 913 mm W40
- Ramp 140 mm high. Length 1390 mm W40
- Trolley GN1/1 20 trays 598x530x1630 mm
- Trolley EN60x40 20 trays 460x620x1750 mm
- Trolley GN2/1 20 trays 660x720x1750 mm
- Trolley EN60x80 20 trays 660x820x1750 mm
- Purity C Quell ST 50 filter cartridge
- Sanitizing detergent
- Sterilizing UV lamp
Variants
- Abbattitore fornito smontato
- Floor 20 mm high, ramp included
- Reverse door opening from standard
- Door opening turning and control panel inversion
- Door stop 100°
- Sonda al cuore 3 punti di lettura
- Sonda al cuore riscaldata 1 punto di lettura
- Winter kit -20°C
- Winter kit -40°C
- Predisposition for connection to CO2 remote control unit
- Other special voltage
Vision Industry W51K U

W51KUR
Vision Industry W51K U
Trolley blast chiller
Roll-in
remote
Trolley blast chiller
Roll-in
remote
Features
- Functions Blast chilling, shock freezing, continuous cycle
- Control 7" touch screen display with USB port
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing Internal and external in “linen canvas” steel
- Inner corners Rounded base 20 mm
- Handle In AISI 304 stainless steel
Constructive Data
- Max capacity 1 trolley
- Temperature range -40°+10°C
- Refrigerant unit remote
- Yield +90/+3 260 Kg
- Yield +90/-18 200 Kg
- Cooling gas R404/R452
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 1600×1430×2510 mm
- Packing dimensions 1734×1694×2550 mm
- Net / gross weight 443 Kg / 483 Kg
- Net / gross volume /
- Voltage 400-415 V - 50-60 Hz
- Total rate 2140 W - 4,34 A
- Cooling capacity 22980 W*
- * Evap. -10°C Cond. +45°C
- Pipe delivery 12 mm
- Pipe suction 42 mm
Accessories
- Open remote condensing unit 4NES-14Y
- Silenced faired remote condensing unit 4NES-14Y
- Faired unit with remote condenser 4NES-14Y
- PVC ventilation profiles W50K
- Ramp 100 mm high. Length 913 mm W40
- Ramp 140 mm high. Length 1390 mm W40
- Trolley GN1/1 20 trays 598x530x1630 mm
- Trolley EN60x40 20 trays 460x620x1750 mm
- Trolley GN2/1 20 trays 660x720x1750 mm
- Trolley EN60x80 20 trays 660x820x1750 mm
- Purity C Quell ST 50 filter cartridge
- Sanitizing detergent
- Sterilizing UV lamp
Variants
- Abbattitore fornito smontato
- Floor 20 mm high, ramp included
- Reverse door opening from standard
- Door opening turning and control panel inversion
- Door stop 100°
- Sonda al cuore 3 punti di lettura
- Sonda al cuore riscaldata 1 punto di lettura
- Winter kit -20°C
- Winter kit -40°C
- Predisposition for connection to CO2 remote control unit
- Other special voltage
Vision Industry W50LK U

W50LKUR
Vision Industry W50LK U
Trolley blast chiller
Roll-in
remote
Trolley blast chiller
Roll-in
remote
Features
- Functions Blast chilling, shock freezing, continuous cycle
- Control 7" touch screen display with USB port
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing Internal and external in “linen canvas” steel
- Inner corners Rounded base 20 mm
- Handle In AISI 304 stainless steel
Constructive Data
- Max capacity 1 trolley
- Temperature range -40°+10°C
- Refrigerant unit remote
- Yield +90/+3 200 Kg
- Yield +90/-18 160 Kg
- Cooling gas R404/R452
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 1850×1430×2510 mm
- Packing dimensions 1985×1695×2550 mm
- Net / gross weight 453 Kg / 498 Kg
- Net / gross volume /
- Voltage 400-415 V - 50-60 Hz
- Total rate 2270 W - 4,90 A
- Cooling capacity 22980 W*
- * Evap. -10°C Cond. +45°C
- Pipe delivery 12 mm
- Pipe suction 42 mm
Accessories
- Open remote condensing unit 4NES-14Y
- Silenced faired remote condensing unit 4NES-14Y
- Faired unit with remote condenser 4NES-14Y
- PVC ventilation profiles W50LK
- Ramp 100 mm high. Length 913 mm W50L
- Ramp 140 mm high. Length 1390 mm W50L
- Trolley GN1/1 20 trays 598x530x1630 mm
- Trolley EN60x40 20 trays 460x620x1750 mm
- Trolley GN2/1 20 trays 660x720x1750 mm
- Trolley EN60x80 20 trays 660x820x1750 mm
- Purity C Quell ST 50 filter cartridge
- Sanitizing detergent
- Sterilizing UV lamp
Variants
- Abbattitore fornito smontato
- Floor 20 mm high, ramp included
- Reverse door opening from standard
- Door opening turning and control panel inversion
- Door stop 100°
- Sonda al cuore 3 punti di lettura
- Sonda al cuore riscaldata 1 punto di lettura
- Winter kit -20°C
- Winter kit -40°C
- Predisposition for connection to CO2 remote control unit
- Other special voltage
Vision Industry W41K U

W41KUR
Vision Industry W41K U
Trolley blast chiller
Roll-in
remote
Trolley blast chiller
Roll-in
remote
Features
- Functions Blast chilling, shock freezing, continuous cycle
- Control 7" touch screen display with USB port
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing Internal and external in “linen canvas” steel
- Inner corners Rounded base 20 mm
- Handle In AISI 304 stainless steel
Constructive Data
- Max capacity 1 trolley
- Temperature range -40°+10°C
- Refrigerant unit remote
- Yield +90/+3 160 Kg
- Yield +90/-18 120 Kg
- Cooling gas R404/R452
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 1480×1430×2510 mm
- Packing dimensions 1620×1700×2550 mm
- Net / gross weight 408 Kg / 443 Kg
- Net / gross volume /
- Voltage 400-415 V - 50-60 Hz
- Total rate 2140 W - 4,34 A
- Cooling capacity 14940 W*
- * Evap. -10°C Cond. +45°C
- Pipe delivery 12 mm
- Pipe suction 35 mm
Accessories
- Open remote condensing unit 4TES-9Y
- Silenced faired remote condensing unit 4TES-9Y
- Faired unit with remote condenser 4TES-9Y
- PVC ventilation profiles W40K
- Ramp 100 mm high. Length 913 mm W40
- Ramp 140 mm high. Length 1390 mm W40
- Trolley GN1/1 20 trays 598x530x1630 mm
- Trolley EN60x40 20 trays 460x620x1750 mm
- Trolley GN2/1 20 trays 660x720x1750 mm
- Trolley EN60x80 20 trays 660x820x1750 mm
- Purity C Quell ST 50 filter cartridge
- Sanitizing detergent
- Sterilizing UV lamp
Variants
- Abbattitore fornito smontato
- Floor 20 mm high, ramp included
- Reverse door opening from standard
- Door opening turning and control panel inversion
- Door stop 100°
- Sonda al cuore 3 punti di lettura
- Sonda al cuore riscaldata 1 punto di lettura
- Winter kit -20°C
- Winter kit -40°C
- Predisposition for connection to CO2 remote control unit
- Other special voltage
Vision Industry W35K U

W35KU
Vision Industry W35K U
Trolley blast chiller
Roll-in
Plug-in predisposed
Trolley blast chiller
Roll-in
Plug-in predisposed
Features
- Functions Blast chilling, shock freezing, continuous cycle
- Control 7" touch screen display with USB port
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing Internal and external in “linen canvas” steel
- Inner corners Rounded base 20 mm
- Handle In AISI 304 stainless steel
Constructive Data
- Max capacity 1 trolley
- Temperature range -40°+10°C
- Refrigerant unit Plug-in
- Yield +90/+3 85 Kg
- Yield +90/-18 60 Kg
- Climate class 5
- Cooling gas R404/R452
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 1230×1200×2770 mm
- Packing dimensions 1464×1364×2550 mm
- Net / gross weight 380 Kg / 410 Kg
- Net / gross volume /
- Voltage 400-415 V - 50 Hz
- Total rate 6260 W - 17,65 A
- Cooling capacity 9100 W*
- * Evap. -10°C Cond. +45°C
Accessories
- PVC ventilation profiles W35K
- Ramp 100 mm high. Length 913 mm W35
- Ramp 140 mm high. Length 1390 mm W35
- Trolley GN1/1 20 trays 598x530x1630 mm
- Trolley EN60x40 20 trays 460x620x1750 mm
- Purity C Quell ST 50 filter cartridge
- Sanitizing detergent
- Sterilizing UV lamp
Variants
- Abbattitore fornito smontato
- Floor 20 mm high, ramp included
- Reverse door opening from standard
- Door opening turning and control panel inversion
- Door stop 100°
- Sonda al cuore 3 punti di lettura
- Sonda al cuore riscaldata 1 punto di lettura
- Winter kit -20°C
- Winter kit -40°C
- Other special voltage
