1 trolley W35 - W40 - W41 - W50 - W51 - W50L - W54L
Vision Industry W35K F
W35KF
Vision Industry W35K F

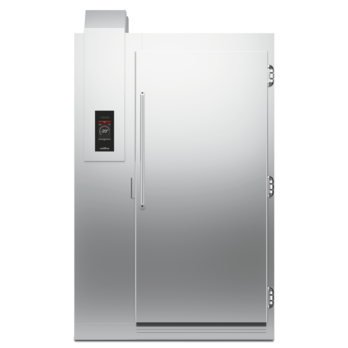

Trolley blast chiller
Roll-in
Plug-in predisposed
Trolley blast chiller
Roll-in
Plug-in predisposed
Features
- Functions Blast chilling, shock freezing, thawing, proving and retarder prover, holding, steam sanitizing, manualcycle
- Control 7" touch screen display with USB port
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing Internal and external in “linen canvas” steel
- Inner corners Rounded base 20 mm
- Handle In AISI 304 stainless steel
Constructive Data
- Max capacity 1 trolley GN1/1, EN60x40
- Temperature range -40°+65°C
- Refrigerant unit Plug-in
- Yield +90/+3 85 Kg
- Yield +90/-18 60 Kg
- Climate class 5
- Cooling gas R404/R452
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 1230×1200×2770 mm
- Packing dimensions 1464×1364×2550 mm
- Gross weight 420 Kg
- Voltage 400-415 V - 50 Hz
- Total rate 8760 W
- Absorbed Current 28,86 A
- Cooling capacity 9100 W*
- * Evap. -10°C Cond. +45°C
Accessories
- PVC ventilation profiles W35K
- Ramp 100 mm high. Length 913 mm W35
- Ramp 140 mm high. Length 1390 mm W35
- Trolley GN1/1 20 trays 598x530x1630 mm
- Trolley EN60x40 20 trays 460x620x1750 mm
- Purity C Quell ST 50 filter cartridge
- Sanitizing detergent
Variants
- Abbattitore fornito smontato
- Floor 20 mm high, ramp included
- Reverse door opening from standard
- Door opening turning and control panel inversion
- Door stop 100°
- Sonda al cuore 3 punti di lettura
- Sonda al cuore riscaldata 1 punto di lettura
- Winter kit -20°C
- Winter kit -40°C
- Other special voltage
Vision Industry W35K F
W35KFR
Vision Industry W35K F
Trolley blast chiller
Roll-in
remote
Trolley blast chiller
Roll-in
remote
Features
- Functions Blast chilling, shock freezing, thawing, proving and retarder prover, holding, steam sanitizing, manualcycle
- Control 7" touch screen display with USB port
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing Internal and external in “linen canvas” steel
- Inner corners Rounded base 20 mm
- Handle In AISI 304 stainless steel
Constructive Data
- Max capacity 1 trolley GN1/1, EN60x40
- Temperature range -40°+65°C
- Refrigerant unit remote
- Yield +90/+3 100 Kg
- Yield +90/-18 80 Kg
- Cooling gas R404/R452
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 1230×1200×2510 mm
- Packing dimensions 1464×1364×2550 mm
- Gross weight 340 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 3170 W
- Absorbed Current 12,46 A
- Cooling capacity 11010 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Open remote condensing unit 4EES-4Y
- Silenced faired remote condensing unit 4EES-4Y + winter kit -20°
- PVC ventilation profiles W35K
- Ramp 100 mm high. Length 913 mm W35
- Ramp 140 mm high. Length 1390 mm W35
- Trolley GN1/1 20 trays 598x530x1630 mm
- Trolley EN60x40 20 trays 460x620x1750 mm
- Purity C Quell ST 50 filter cartridge
- Sanitizing detergent
Variants
- Abbattitore fornito smontato
- Floor 20 mm high, ramp included
- Reverse door opening from standard
- Door opening turning and control panel inversion
- Door stop 100°
- Sonda al cuore 3 punti di lettura
- Sonda al cuore riscaldata 1 punto di lettura
- Winter kit -20°C
- Winter kit -40°C
- Other special voltage
Vision Industry W40K F
W40KFR
Vision Industry W40K F
Trolley blast chiller
Roll-in
remote
Trolley blast chiller
Roll-in
remote
Features
- Functions Blast chilling, shock freezing, thawing, proving and retarder prover, holding, steam sanitizing, manualcycle
- Control 7" touch screen display with USB port
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing Internal and external in “linen canvas” steel
- Inner corners Rounded base 20 mm
- Handle In AISI 304 stainless steel
Constructive Data
- Max capacity 1 trolley GN2/1, EN60x80
- Temperature range -40°+65°C
- Refrigerant unit remote
- Yield +90/+3 120 Kg
- Yield +90/-18 90 Kg
- Cooling gas R404/R452
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 1480×1430×2510 mm
- Packing dimensions 1620×1700×2550 mm
- Gross weight 450 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 4270 W
- Absorbed Current 16,13 A
- Cooling capacity 13170 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Open remote condensing unit 4CES-6Y
- Silenced faired remote condensing unit 4CES-6Y
- Faired unit with remote condenser 4CES-6Y
- PVC ventilation profiles W40K
- Ramp 100 mm high. Length 913 mm W40
- Ramp 140 mm high. Length 1390 mm W40
- Trolley GN1/1 20 trays 598x530x1630 mm
- Trolley EN60x40 20 trays 460x620x1750 mm
- Trolley GN2/1 20 trays 660x720x1750 mm
- Trolley EN60x80 20 trays 660x820x1750 mm
- Purity C Quell ST 50 filter cartridge
- Sanitizing detergent
Variants
- Abbattitore fornito smontato
- Floor 20 mm high, ramp included
- Reverse door opening from standard
- Door opening turning and control panel inversion
- Door stop 100°
- Sonda al cuore 3 punti di lettura
- Sonda al cuore riscaldata 1 punto di lettura
- Winter kit -20°C
- Winter kit -40°C
- Other special voltage
Vision Industry W41K F
W41KFR
Vision Industry W41K F
Trolley blast chiller
Roll-in
remote
Trolley blast chiller
Roll-in
remote
Features
- Functions Blast chilling, shock freezing, thawing, proving and retarder prover, holding, steam sanitizing, manualcycle
- Control 7" touch screen display with USB port
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing Internal and external in “linen canvas” steel
- Inner corners Rounded base 20 mm
- Handle In AISI 304 stainless steel
Constructive Data
- Max capacity 1 trolley GN2/1, EN60x80
- Temperature range -40°+65°C
- Refrigerant unit remote
- Yield +90/+3 160 Kg
- Yield +90/-18 120 Kg
- Cooling gas R404/R452
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 1480×1430×2510 mm
- Packing dimensions 1620×1700×2550 mm
- Gross weight 453 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 5140 W
- Absorbed Current 17,43 A
- Cooling capacity 14940 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Open remote condensing unit 4TES-9Y
- Silenced faired remote condensing unit 4TES-9Y
- Faired unit with remote condenser 4TES-9Y
- PVC ventilation profiles W40K
- Ramp 100 mm high. Length 913 mm W40
- Ramp 140 mm high. Length 1390 mm W40
- Trolley GN1/1 20 trays 598x530x1630 mm
- Trolley EN60x40 20 trays 460x620x1750 mm
- Trolley GN2/1 20 trays 660x720x1750 mm
- Trolley EN60x80 20 trays 660x820x1750 mm
- Purity C Quell ST 50 filter cartridge
- Sanitizing detergent
Variants
- Abbattitore fornito smontato
- Floor 20 mm high, ramp included
- Reverse door opening from standard
- Door opening turning and control panel inversion
- Door stop 100°
- Sonda al cuore 3 punti di lettura
- Sonda al cuore riscaldata 1 punto di lettura
- Winter kit -20°C
- Winter kit -40°C
- Other special voltage
Vision Industry W50K F
W50KFR
Vision Industry W50K F
Trolley blast chiller
Roll-in
remote
Trolley blast chiller
Roll-in
remote
Features
- Functions Blast chilling, shock freezing, thawing, proving and retarder prover, holding, steam sanitizing, manualcycle
- Control 7" touch screen display with USB port
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing Internal and external in “linen canvas” steel
- Inner corners Rounded base 20 mm
- Handle In AISI 304 stainless steel
Constructive Data
- Max capacity 1 trolley GN2/1, EN60x80
- Temperature range -40°+65°C
- Refrigerant unit remote
- Yield +90/+3 200 Kg
- Yield +90/-18 160 Kg
- Cooling gas R404/R452
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 1600×1430×2510 mm
- Packing dimensions 1734×1694×2550 mm
- Gross weight 490 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 4270 W
- Absorbed Current 16,13 A
- Cooling capacity 20610 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Open remote condensing unit 4PES-12Y
- Silenced faired remote condensing unit 4PES-12Y
- Faired unit with remote condenser 4PES-12Y
- PVC ventilation profiles W50K
- Ramp 100 mm high. Length 913 mm W40
- Ramp 140 mm high. Length 1390 mm W40
- Trolley GN1/1 20 trays 598x530x1630 mm
- Trolley EN60x40 20 trays 460x620x1750 mm
- Trolley GN2/1 20 trays 660x720x1750 mm
- Trolley EN60x80 20 trays 660x820x1750 mm
- Purity C Quell ST 50 filter cartridge
- Sanitizing detergent
Variants
- Abbattitore fornito smontato
- Floor 20 mm high, ramp included
- Reverse door opening from standard
- Door opening turning and control panel inversion
- Door stop 100°
- Sonda al cuore 3 punti di lettura
- Sonda al cuore riscaldata 1 punto di lettura
- Winter kit -20°C
- Winter kit -40°C
- Other special voltage
Vision Industry W51K F
W51KFR
Vision Industry W51K F
Trolley blast chiller
Roll-in
remote
Trolley blast chiller
Roll-in
remote
Features
- Functions Blast chilling, shock freezing, thawing, proving and retarder prover, holding, steam sanitizing, manualcycle
- Control 7" touch screen display with USB port
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing Internal and external in “linen canvas” steel
- Inner corners Rounded base 20 mm
- Handle In AISI 304 stainless steel
Constructive Data
- Max capacity 1 trolley GN2/1, EN60x80
- Temperature range -40°+65°C
- Refrigerant unit remote
- Yield +90/+3 260 Kg
- Yield +90/-18 200 Kg
- Cooling gas R404/R452
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 1600×1430×2510 mm
- Packing dimensions 1734×1694×2550 mm
- Gross weight 493 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 5140 W
- Absorbed Current 17,33 A
- Cooling capacity 22980 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Open remote condensing unit 4NES-14Y
- Silenced faired remote condensing unit 4NES-14Y
- Faired unit with remote condenser 4NES-14Y
- PVC ventilation profiles W50K
- Ramp 100 mm high. Length 913 mm W40
- Ramp 140 mm high. Length 1390 mm W40
- Trolley GN1/1 20 trays 598x530x1630 mm
- Trolley EN60x40 20 trays 460x620x1750 mm
- Trolley GN2/1 20 trays 660x720x1750 mm
- Trolley EN60x80 20 trays 660x820x1750 mm
- Purity C Quell ST 50 filter cartridge
- Sanitizing detergent
Variants
- Abbattitore fornito smontato
- Floor 20 mm high, ramp included
- Reverse door opening from standard
- Door opening turning and control panel inversion
- Door stop 100°
- Sonda al cuore 3 punti di lettura
- Sonda al cuore riscaldata 1 punto di lettura
- Winter kit -20°C
- Winter kit -40°C
- Other special voltage
Vision Industry W50LK F
W50LKFR
Vision Industry W50LK F
Trolley blast chiller
Roll-in
remote
Trolley blast chiller
Roll-in
remote
Features
- Functions Blast chilling, shock freezing, thawing, proving and retarder prover, holding, steam sanitizing, manualcycle
- Control 7" touch screen display with USB port
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing Internal and external in “linen canvas” steel
- Inner corners Rounded base 20 mm
- Handle In AISI 304 stainless steel
Constructive Data
- Max capacity 1 trolley 100x100
- Temperature range -40°+65°C
- Refrigerant unit remote
- Yield +90/+3 200 Kg
- Yield +90/-18 160 Kg
- Cooling gas R404/R452
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 1850×1430×2510 mm
- Packing dimensions 1985×1695×2550 mm
- Gross weight 508 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 8270 W
- Absorbed Current 17,30 A
- Cooling capacity 22980 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Open remote condensing unit 4NES-14Y
- Silenced faired remote condensing unit 4NES-14Y
- Faired unit with remote condenser 4NES-14Y
- PVC ventilation profiles W50LK
- Ramp 100 mm high. Length 913 mm W50L
- Ramp 140 mm high. Length 1390 mm W50L
- Trolley GN1/1 20 trays 598x530x1630 mm
- Trolley EN60x40 20 trays 460x620x1750 mm
- Trolley GN2/1 20 trays 660x720x1750 mm
- Trolley EN60x80 20 trays 660x820x1750 mm
- Purity C Quell ST 50 filter cartridge
- Sanitizing detergent
Variants
- Abbattitore fornito smontato
- Floor 20 mm high, ramp included
- Reverse door opening from standard
- Door opening turning and control panel inversion
- Door stop 100°
- Sonda al cuore 3 punti di lettura
- Sonda al cuore riscaldata 1 punto di lettura
- Winter kit -20°C
- Winter kit -40°C
- Other special voltage
Vision Industry W54LK F
W54LKFR
Vision Industry W54LK F
Trolley blast chiller
Roll-in
remote
Trolley blast chiller
Roll-in
remote
Features
- Functions Blast chilling, shock freezing, thawing, proving and retarder prover, holding, steam sanitizing, manualcycle
- Control 7" touch screen display with USB port
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing Internal and external in “linen canvas” steel
- Inner corners Rounded base 20 mm
- Handle In AISI 304 stainless steel
Constructive Data
- Max capacity 1 trolley 100x100
- Temperature range -40°+65°C
- Refrigerant unit remote
- Yield +90/+3 200 Kg
- Yield +90/-18 160 Kg
- Cooling gas R404/R452
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 1850×1715×2510 mm
- Packing dimensions 1985×1695×2550 mm
- Gross weight 540 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 8270 W
- Absorbed Current 17,30 A
- Cooling capacity 22980 W*
- * Evap. -10°C Cond. +45°C
