20 trays power

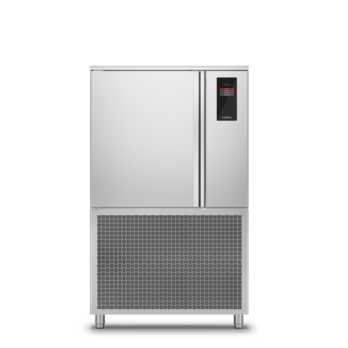

Modi Active Power Blast Chiller
W20PA
Modi Active Power Blast Chiller
-40°+65°C
20 trays EN60X80 GN2/1
Plug-in air unit
-40°+65°C
20 trays EN60X80 GN2/1
Plug-in air unit
Features
- Functions Blast chilling, shock freezing, thawing, proving, holding, desiccation, chocolate, manual cycle
- Standard equipment 10 slides GN2/1, EN60x80
- Control 4,3" touch screen display with USB port
- Doors With odour control system
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304, quick release
- Top 4 cm thickness
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 513 lt
- Temperature range -40°+65°C
- Refrigerant unit Plug-in
- Yield +90/+3 80 Kg
- Yield +90/-18 60 Kg
- Climate class 5
- Cooling gas R452a
- Defrost Hot gas
- Valve Mechanical expansion
- Dimensions 1100×1045×1843 mm
- Packing dimensions 1180×1125×1905 mm
- Gross weight 215 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 7150 W
- Absorbed Current 16,64 A
- Cooling capacity 9820 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Lowered foot h 55/70 mm
- 4 Swivel and brake castors h 128 mm
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Stainless steel shelf GN2/1
- Plastic coated shelf GN2/1
- Pair of type L slides 755 mm GN2/1-EN60x80
- Run-in slide for mobile oven rack Rational 102
- Sterilizing UV lamp
Variants
- RAL customisable colouring
- Sonda al cuore a 3 punti di lettura
- Sonda al cuore riscaldata a 1 punto di lettura
- Reverse door opening from standard
- Alimentazione Monofase 50Hz oppure 60Hz
- Alimentazione Trifase 50Hz oppure 60Hz
- Alimentazione frequenza 60Hz
- Other special voltage
Modi Active Power Blast Chiller
W20PAA
Modi Active Power Blast Chiller
-40°+65°C
20 trays EN60X80 GN2/1
Plug-in water unit
-40°+65°C
20 trays EN60X80 GN2/1
Plug-in water unit
Features
- Functions Blast chilling, shock freezing, thawing, proving, holding, desiccation, chocolate, manual cycle
- Standard equipment 10 slides GN2/1, EN60x80
- Control 4,3" touch screen display with USB port
- Doors With odour control system
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304, quick release
- Top 4 cm thickness
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 513 lt
- Temperature range -40°+65°C
- Refrigerant unit Plug-in water unit
- Yield +90/+3 80 Kg
- Yield +90/-18 60 Kg
- Climate class 5
- Cooling gas R452a
- Defrost Hot gas
- Valve Mechanical expansion
- Dimensions 1100×1045×1843 mm
- Packing dimensions 1180×1125×1905 mm
- Gross weight 215 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 7150 W
- Absorbed Current 16,64 A
- Cooling capacity 9820 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Lowered foot h 55/70 mm
- 4 Swivel and brake castors h 128 mm
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Stainless steel shelf GN2/1
- Plastic coated shelf GN2/1
- Pair of type L slides 755 mm GN2/1-EN60x80
- Run-in slide for mobile oven rack Rational 102
- Sterilizing UV lamp
Variants
- RAL customisable colouring
- Sonda al cuore a 3 punti di lettura
- Sonda al cuore riscaldata a 1 punto di lettura
- Reverse door opening from standard
- Alimentazione Monofase 50Hz oppure 60Hz
- Alimentazione Trifase 50Hz oppure 60Hz
- Alimentazione frequenza 60Hz
- Other special voltage
Modi Active Power Blast Chiller
W20PAR
Modi Active Power Blast Chiller
-40°+65°C
20 trays EN60X80 GN2/1
remote
-40°+65°C
20 trays EN60X80 GN2/1
remote
Features
- Functions Blast chilling, shock freezing, thawing, proving, holding, desiccation, chocolate, manual cycle
- Standard equipment 10 slides GN2/1, EN60x80
- Control 4,3" touch screen display with USB port
- Doors With odour control system
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304, quick release
- Top 4 cm thickness
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 513 lt
- Temperature range -40°+65°C
- Refrigerant unit remote
- Yield +90/+3 80 Kg
- Yield +90/-18 60 Kg
- Cooling gas R452a
- Defrost Forced air
- Valve Mechanical expansion
- Dimensions 1100×1045×1843 mm
- Packing dimensions 1180×1125×1905 mm
- Gross weight 180 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 1410 W
- Absorbed Current 6,81 A
- Cooling capacity 9820 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Open remote condensing unit W20TP
- Silenced faired remote condensing unit W20T
- Lowered foot h 55/70 mm
- 4 Swivel and brake castors h 128 mm
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Stainless steel shelf GN2/1
- Plastic coated shelf GN2/1
- Pair of type L slides 755 mm GN2/1-EN60x80
- Run-in slide for mobile oven rack Rational 102
- Sterilizing UV lamp
Variants
- RAL customisable colouring
- Sonda al cuore a 3 punti di lettura
- Sonda al cuore riscaldata a 1 punto di lettura
- Reverse door opening from standard
- Alimentazione Monofase 50Hz oppure 60Hz
- Alimentazione Trifase 50Hz oppure 60Hz
- Alimentazione frequenza 60Hz
- Other special voltage
Modi Active Power Blast Chiller
W20PAE
Modi Active Power Blast Chiller
-40°+65°C
20 trays EN60x80
Plug-in air unit
-40°+65°C
20 trays EN60x80
Plug-in air unit
Features
- Functions Blast chilling, shock freezing, thawing, proving, holding, desiccation, chocolate, manual cycle
- Standard equipment 10 slides EN60x80
- Control 4,3" touch screen display with USB port
- Doors With odour control system
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304, quick release
- Top 4 cm thickness
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 513 lt
- Temperature range -40°+65°C
- Refrigerant unit Plug-in
- Yield +90/+3 80 Kg
- Yield +90/-18 60 Kg
- Climate class 5
- Cooling gas R452a
- Defrost Hot gas
- Valve Mechanical expansion
- Dimensions 1100×1045×1843 mm
- Packing dimensions 1180×1125×1905 mm
- Gross weight 215 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 7150 W
- Absorbed Current 16,64 A
- Cooling capacity 9820 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Lowered foot h 55/70 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 755 mm EN60x80
- Sterilizing UV lamp
Variants
- RAL customisable colouring
- Sonda al cuore a 3 punti di lettura
- Sonda al cuore riscaldata a 1 punto di lettura
- Reverse door opening from standard
- Alimentazione Monofase 50Hz oppure 60Hz
- Alimentazione Trifase 50Hz oppure 60Hz
- Alimentazione frequenza 60Hz
- Other special voltage
Modi Active Power Blast Chiller
W20PAEA
Modi Active Power Blast Chiller
-40°+65°C
20 trays EN60x80
Plug-in water unit
-40°+65°C
20 trays EN60x80
Plug-in water unit
Features
- Functions Blast chilling, shock freezing, thawing, proving, holding, desiccation, chocolate, manual cycle
- Standard equipment 10 slides EN60x80
- Control 4,3" touch screen display with USB port
- Doors With odour control system
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304, quick release
- Top 4 cm thickness
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 513 lt
- Temperature range -40°+65°C
- Refrigerant unit Plug-in water unit
- Yield +90/+3 80 Kg
- Yield +90/-18 60 Kg
- Climate class 5
- Cooling gas R452a
- Defrost Hot gas
- Valve Mechanical expansion
- Dimensions 1100×1045×1843 mm
- Packing dimensions 1180×1125×1905 mm
- Gross weight 215 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 7150 W
- Absorbed Current 16,64 A
- Cooling capacity 9820 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Lowered foot h 55/70 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 755 mm EN60x80
- Sterilizing UV lamp
Variants
- RAL customisable colouring
- Sonda al cuore a 3 punti di lettura
- Sonda al cuore riscaldata a 1 punto di lettura
- Reverse door opening from standard
- Alimentazione Monofase 50Hz oppure 60Hz
- Alimentazione Trifase 50Hz oppure 60Hz
- Alimentazione frequenza 60Hz
- Other special voltage
Modi Active Power Blast Chiller
W20PAER
Modi Active Power Blast Chiller
-40°+65°C
20 trays EN60x80
remote
-40°+65°C
20 trays EN60x80
remote
Features
- Functions Blast chilling, shock freezing, thawing, proving, holding, desiccation, chocolate, manual cycle
- Standard equipment 10 slides EN60x80
- Control 4,3" touch screen display with USB port
- Doors With odour control system
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304, quick release
- Top 4 cm thickness
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 513 lt
- Temperature range -40°+65°C
- Refrigerant unit remote
- Yield +90/+3 80 Kg
- Yield +90/-18 60 Kg
- Cooling gas R452a
- Defrost Forced air
- Valve Mechanical expansion
- Dimensions 1100×1045×1843 mm
- Packing dimensions 1180×1125×1905 mm
- Gross weight 180 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 1410 W
- Absorbed Current 9,23 A
- Cooling capacity 9820 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Open remote condensing unit W20TP
- Silenced faired remote condensing unit W20T
- Lowered foot h 55/70 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 755 mm EN60x80
- Sterilizing UV lamp
Variants
- RAL customisable colouring
- Sonda al cuore a 3 punti di lettura
- Sonda al cuore riscaldata a 1 punto di lettura
- Reverse door opening from standard
- Alimentazione Monofase 50Hz oppure 60Hz
- Alimentazione Trifase 50Hz oppure 60Hz
- Alimentazione frequenza 60Hz
- Other special voltage
Modi Active Power Blast Chiller
W20PAL
Modi Active Power Blast Chiller
-40°+65°C
20 trays EN60x80 ice cream
Plug-in air unit
-40°+65°C
20 trays EN60x80 ice cream
Plug-in air unit
Features
- Functions Blast chilling, shock freezing, thawing, proving, holding, desiccation, chocolate, manual cycle
- Standard equipment 3 slides EN60x80, 6 plastic coated EN60x40 shelves
- Control 4,3" touch screen display with USB port
- Doors With odour control system
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304, quick release
- Top 4 cm thickness
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Max capacity 24 basins 360x165x150 mm or 24 ice cream containers Ø 200x200x125 mm
- Gross capacity 513 lt
- Temperature range -40°+65°C
- Refrigerant unit Plug-in
- Yield +90/+3 80 Kg
- Yield +90/-18 60 Kg
- Climate class 5
- Cooling gas R452a
- Defrost Hot gas
- Valve Mechanical expansion
- Dimensions 1100×1045×1843 mm
- Packing dimensions 1180×1125×1905 mm
- Gross weight 220 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 7150 W
- Absorbed Current 16,64 A
- Cooling capacity 9820 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Lowered foot h 55/70 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 755 mm EN60x80
- Sterilizing UV lamp
Variants
- RAL customisable colouring
- Sonda al cuore a 3 punti di lettura
- Sonda al cuore riscaldata a 1 punto di lettura
- Reverse door opening from standard
- Alimentazione Monofase 50Hz oppure 60Hz
- Alimentazione Trifase 50Hz oppure 60Hz
- Alimentazione frequenza 60Hz
- Other special voltage
Modi Active Power Blast Chiller
W20PALA
Modi Active Power Blast Chiller
-40°+65°C
20 trays EN60x80 ice cream
Plug-in water unit
-40°+65°C
20 trays EN60x80 ice cream
Plug-in water unit
Features
- Functions Blast chilling, shock freezing, thawing, proving, holding, desiccation, chocolate, manual cycle
- Standard equipment 3 slides EN60x80, 6 plastic coated EN60x40 shelves
- Control 4,3" touch screen display with USB port
- Doors With odour control system
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304, quick release
- Top 4 cm thickness
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Max capacity 24 basins 360x165x150 mm or 24 ice cream containers Ø 200x200x125 mm
- Gross capacity 513 lt
- Temperature range -40°+65°C
- Refrigerant unit Plug-in water unit
- Yield +90/+3 80 Kg
- Yield +90/-18 60 Kg
- Climate class 5
- Cooling gas R452a
- Defrost Hot gas
- Valve Mechanical expansion
- Dimensions 1100×1045×1843 mm
- Packing dimensions 1180×1125×1905 mm
- Gross weight 220 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 7150 W
- Absorbed Current 16,64 A
- Cooling capacity 9820 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Lowered foot h 55/70 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 755 mm EN60x80
- Sterilizing UV lamp
Variants
- RAL customisable colouring
- Sonda al cuore a 3 punti di lettura
- Sonda al cuore riscaldata a 1 punto di lettura
- Reverse door opening from standard
- Alimentazione Monofase 50Hz oppure 60Hz
- Alimentazione Trifase 50Hz oppure 60Hz
- Alimentazione frequenza 60Hz
- Other special voltage
Modi Active Power Blast Chiller
W20PALR
Modi Active Power Blast Chiller
-40°+65°C
20 trays EN60x80 ice cream
remote
-40°+65°C
20 trays EN60x80 ice cream
remote
Features
- Functions Blast chilling, shock freezing, thawing, proving, holding, desiccation, chocolate, manual cycle
- Standard equipment 3 slides EN60x80, 6 plastic coated EN60x40 shelves
- Control 4,3" touch screen display with USB port
- Doors With odour control system
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304, quick release
- Top 4 cm thickness
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Max capacity 24 basins 360x165x150 mm or 24 ice cream containers Ø 200x200x125 mm
- Gross capacity 513 lt
- Temperature range -40°+65°C
- Refrigerant unit remote
- Yield +90/+3 80 Kg
- Yield +90/-18 60 Kg
- Cooling gas R452a
- Defrost Forced air
- Valve Mechanical expansion
- Dimensions 1100×1045×1843 mm
- Packing dimensions 1180×1125×1905 mm
- Gross weight 185 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 1410 W
- Absorbed Current 9,23 A
- Cooling capacity 9820 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Open remote condensing unit W20TP
- Silenced faired remote condensing unit W20T
- Lowered foot h 55/70 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 755 mm EN60x80
- Sterilizing UV lamp
Variants
- RAL customisable colouring
- Sonda al cuore a 3 punti di lettura
- Sonda al cuore riscaldata a 1 punto di lettura
- Reverse door opening from standard
- Alimentazione Monofase 50Hz oppure 60Hz
- Alimentazione Trifase 50Hz oppure 60Hz
- Alimentazione frequenza 60Hz
- Other special voltage
