3 doors plug-in
Snack GN counter 3 doors
![](/catalogo/prodotti/immagini/image-thumb__22959__product-thumbnail/T10381000404_Tavolo_3P_PLUGIN_1600_con_piano.png)
TP16/1B-490
Snack GN counter 3 doors
-15°-22°C
with top h. 490 mm L. 1600 mm
Plug-in
-15°-22°C
with top h. 490 mm L. 1600 mm
Plug-in
Features
- Standard equipment 3 slides, 3 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 278 lt
- Temperature range -15°-22°C
- Refrigerant unit Plug-in
- Energetic class D
- Energy efficiency index 51,3
- Annual consumption 1535 kW/h annum
- 24h consumption 4,205 kW/h/24h
- Climate class 5
- Cooling gas R290
- Defrost Hot gas
- Body height 490 mm
- Valve Supplied standard with solenoid
- Dimensions 1600×700×630 mm
- Packing dimensions 1875×800×998 mm
- Gross weight 150 Kg
- Voltage 220-240 V - 50 Hz
- Total rate 850 W
- Absorbed Current 3,9 A
- Cooling capacity 569 W*
- * Evap. -30°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Bottles shelf, stainless steel coating for shelf 350
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- IP44 schuko socket with cover
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- Removable plinth GN 2D h 100 mm
- Removable plinth GN 2D h 150 mm
Variants
- Drawers 1/1
- Drawers 1/2
- Special size of technical compartment
- Drawers 1/1
- Drawers 1/2
- Technical compartment on the left
- Lock with key for drawer 1/1
- Special size of technical compartment
- Technical compartment on the left
- Lock with key for drawer 1/2
- RAL customisable colouring
- Lock with key for drawer 1/1
- Lock with key for drawer 1/2
- Plug-in water unit
- Alimentazione frequenza 60Hz
- RAL customisable colouring
- Plug-in water unit
- Other special voltage
- Alimentazione frequenza 60Hz
- Other special voltage
Snack GN counter 3 doors
![](/catalogo/prodotti/immagini/image-thumb__22957__product-thumbnail/T10380000404_Tavolo_3P_PLUGIN_1600_senza_piano.png)
TS16/1B-490
Snack GN counter 3 doors
-15°-22°C
without top h. 490 mm L. 1600 mm
Plug-in
-15°-22°C
without top h. 490 mm L. 1600 mm
Plug-in
Features
- Standard equipment 3 slides, 3 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top Without top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 278 lt
- Temperature range -15°-22°C
- Refrigerant unit Plug-in
- Energetic class D
- Energy efficiency index 51,3
- Annual consumption 1535 kW/h annum
- 24h consumption 4,205 kW/h/24h
- Climate class 5
- Cooling gas R290
- Defrost Hot gas
- Body height 490 mm
- Valve Supplied standard with solenoid
- Dimensions 1600×680×590 mm
- Packing dimensions 1875×800×998 mm
- Gross weight 135 Kg
- Voltage 220-240 V - 50 Hz
- Total rate 850 W
- Absorbed Current 3,9 A
- Cooling capacity 569 W*
- * Evap. -30°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Bottles shelf, stainless steel coating for shelf 350
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- IP44 schuko socket with cover
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- Removable plinth GN 2D h 100 mm
- Removable plinth GN 2D h 150 mm
Variants
- Drawers 1/1
- Drawers 1/2
- Special size of technical compartment
- Drawers 1/1
- Drawers 1/2
- Technical compartment on the left
- Lock with key for drawer 1/1
- Special size of technical compartment
- Technical compartment on the left
- Lock with key for drawer 1/2
- RAL customisable colouring
- Lock with key for drawer 1/1
- Lock with key for drawer 1/2
- Plug-in water unit
- Alimentazione frequenza 60Hz
- RAL customisable colouring
- Plug-in water unit
- Other special voltage
- Alimentazione frequenza 60Hz
- Other special voltage
Snack GN counter 3 doors
![](/catalogo/prodotti/immagini/image-thumb__714__product-thumbnail/T10301000404_Tavolo_SNACK_3P_PLUGIN.png)
TP17/1B-490
Snack GN counter 3 doors
-15°-22°C
with top h. 490 mm
Plug-in
-15°-22°C
with top h. 490 mm
Plug-in
Features
- Standard equipment 3 slides, 3 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 278 lt
- Temperature range -15°-22°C
- Refrigerant unit Plug-in
- Energetic class D
- Energy efficiency index 58
- Annual consumption 1913 kW/h annum
- 24h consumption 5,241 kW/h/24h
- Climate class 5
- Cooling gas R290
- Defrost Hot gas
- Body height 490 mm
- Valve Supplied standard with solenoid
- Dimensions 1780×700×630 mm
- Packing dimensions 1875×800×998 mm
- Gross weight 150 Kg
- Voltage 220-240 V - 50 Hz
- Total rate 850 W
- Absorbed Current 3,9 A
- Cooling capacity 569 W*
- * Evap. -30°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Bottles shelf, stainless steel coating for shelf 350
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- IP44 schuko socket with cover
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- Removable plinth GN 2D h 100 mm
- Removable plinth GN 2D h 150 mm
Variants
- Drawers 1/1
- Drawers 1/2
- Special size of technical compartment
- Technical compartment on the left
- Lock with key for drawer 1/1
- Lock with key for drawer 1/2
- RAL customisable colouring
- Plug-in water unit
- Alimentazione frequenza 60Hz
- Other special voltage
Snack GN counter 3 doors

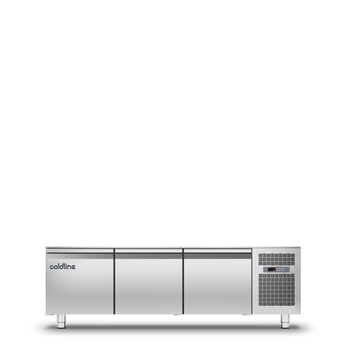

![](/catalogo/prodotti/immagini/image-thumb__699__product-thumbnail/T10300000404_Tavolo_SNACK_3P_PLUGIN.png)
TS17/1B-490
Snack GN counter 3 doors
-15°-22°C
without top h. 490 mm
Plug-in
-15°-22°C
without top h. 490 mm
Plug-in
Features
- Standard equipment 3 slides, 3 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top Without top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 278 lt
- Temperature range -15°-22°C
- Refrigerant unit Plug-in
- Energetic class D
- Energy efficiency index 58
- Annual consumption 1913 kW/h annum
- 24h consumption 5,241 kW/h/24h
- Climate class 5
- Cooling gas R290
- Defrost Hot gas
- Body height 490 mm
- Valve Supplied standard with solenoid
- Dimensions 1780×680×590 mm
- Packing dimensions 1875×800×998 mm
- Gross weight 135 Kg
- Voltage 220-240 V - 50 Hz
- Total rate 850 W
- Absorbed Current 3,9 A
- Cooling capacity 569 W*
- * Evap. -30°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Bottles shelf, stainless steel coating for shelf 350
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- IP44 schuko socket with cover
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- Removable plinth GN 2D h 100 mm
- Removable plinth GN 2D h 150 mm
Variants
- Drawers 1/1
- Drawers 1/2
- Special size of technical compartment
- Technical compartment on the left
- Lock with key for drawer 1/1
- Lock with key for drawer 1/2
- RAL customisable colouring
- Plug-in water unit
- Alimentazione frequenza 60Hz
- Other special voltage
