3 trolleys W150 - W151 - W152 - W150L

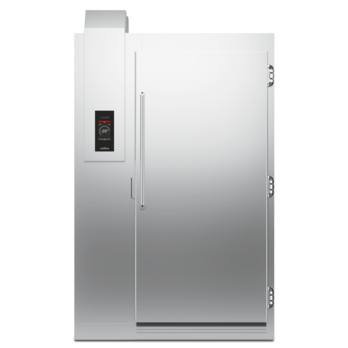

Vision Industry W150K NUVO
W150KHR-2D
Vision Industry W150K NUVO
Trolley blast chiller
Pass-Through
remote
Trolley blast chiller
Pass-Through
remote
Features
- Functions Blast chilling, shock freezing, thawing, proving and retarder prover, holding, steam pasteurisation, low temperature steam cooking, steam sanitizing, manual steam cycle
- Control 7" touch screen display with USB port
- Doors Dictator closure to absorb sudden changes in pressure when opening and closing doors
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing Internal and external in “linen canvas” steel
- Inner corners Rounded base 20 mm
- Handle In AISI 304 stainless steel
Constructive Data
- Max capacity 3 trolleys GN2/1, EN60x80
- Temperature range -40°+85°C
- Refrigerant unit remote
- Yield +90/+3 480 Kg
- Yield +90/-18 360 Kg
- Cooling gas R404/R452
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 1600×3640×2510 mm
- Packing dimensions N°3× 2755×1730×1690 mm
- Gross weight 1.250 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 10810 W
- Absorbed Current 39,79 A
- Cooling capacity 44820 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Open remote condensing unit 4GE-23Y
- Silenced faired remote condensing unit 4GE-23Y
- Faired unit with remote condenser 4GE-23Y
- PVC ventilation profiles W150K
- Ramp 100 mm high. Length 913 mm W40
- Ramp 140 mm high. Length 1390 mm W40
- Trolley GN1/1 20 trays 598x530x1630 mm
- Trolley EN60x40 20 trays 460x620x1750 mm
- Trolley GN2/1 20 trays 660x720x1750 mm
- Trolley EN60x80 20 trays 660x820x1750 mm
- Purity C Quell ST 50 filter cartridge
- Sanitizing detergent
Variants
- Floor 20 mm high, ramp included
- Reverse door opening from standard
- Door opening turning and control panel inversion
- Door stop 100°
- Sonda al cuore 3 punti di lettura
- Sonda al cuore riscaldata 1 punto di lettura
- Winter kit -20°C
- Winter kit -40°C
- Other special voltage

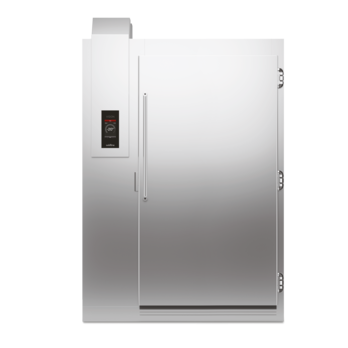

Vision Industry W151K NUVO
W151KHR-2D
Vision Industry W151K NUVO
Trolley blast chiller
Pass-Through
remote
Trolley blast chiller
Pass-Through
remote
Features
- Functions Blast chilling, shock freezing, thawing, proving and retarder prover, holding, steam pasteurisation, low temperature steam cooking, steam sanitizing, manual steam cycle
- Control 7" touch screen display with USB port
- Doors Dictator closure to absorb sudden changes in pressure when opening and closing doors
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing Internal and external in “linen canvas” steel
- Inner corners Rounded base 20 mm
- Handle In AISI 304 stainless steel
Constructive Data
- Max capacity 3 trolleys GN2/1, EN60x80
- Temperature range -40°+85°C
- Refrigerant unit remote
- Yield +90/+3 600 Kg
- Yield +90/-18 480 Kg
- Cooling gas R404/R452
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 1600×3640×2510 mm
- Packing dimensions N°3× 2755×1730×1690 mm
- Gross weight 1.265 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 10810 W
- Absorbed Current 39,79 A
- Cooling capacity 61830 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Silenced faired remote condensing unit 6GE-34Y
- Faired unit with remote condenser 6GE-34Y
- PVC ventilation profiles W150K
- Ramp 100 mm high. Length 913 mm W40
- Ramp 140 mm high. Length 1390 mm W40
- Trolley GN1/1 20 trays 598x530x1630 mm
- Trolley EN60x40 20 trays 460x620x1750 mm
- Trolley GN2/1 20 trays 660x720x1750 mm
- Trolley EN60x80 20 trays 660x820x1750 mm
- Purity C Quell ST 50 filter cartridge
- Sanitizing detergent
Variants
- Floor 20 mm high, ramp included
- Reverse door opening from standard
- Door opening turning and control panel inversion
- Door stop 100°
- Sonda al cuore 3 punti di lettura
- Sonda al cuore riscaldata 1 punto di lettura
- Winter kit -20°C
- Winter kit -40°C
- Other special voltage
Vision Industry W152K NUVO
W152KHR-2D
Vision Industry W152K NUVO
Trolley blast chiller
Pass-Through
remote
Trolley blast chiller
Pass-Through
remote
Features
- Functions Blast chilling, shock freezing, thawing, proving and retarder prover, holding, steam pasteurisation, low temperature steam cooking, steam sanitizing, manual steam cycle
- Control 7" touch screen display with USB port
- Doors Dictator closure to absorb sudden changes in pressure when opening and closing doors
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing Internal and external in “linen canvas” steel
- Inner corners Rounded base 20 mm
- Handle In AISI 304 stainless steel
Constructive Data
- Max capacity 3 trolleys GN2/1, EN60x80
- Temperature range -40°+85°C
- Refrigerant unit remote
- Yield +90/+3 780 Kg
- Yield +90/-18 600 Kg
- Cooling gas R404/R452
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 1600×3640×2510 mm
- Packing dimensions N°3× 2755×1730×1690 mm
- Gross weight 1.275 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 13405 W
- Absorbed Current 43,33 A
- Cooling capacity 68940 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Silenced faired remote condensing unit 6FE-44Y
- Faired unit with remote condenser 6FE-44Y
- PVC ventilation profiles W150K
- Ramp 100 mm high. Length 913 mm W40
- Ramp 140 mm high. Length 1390 mm W40
- Trolley GN1/1 20 trays 598x530x1630 mm
- Trolley EN60x40 20 trays 460x620x1750 mm
- Trolley GN2/1 20 trays 660x720x1750 mm
- Trolley EN60x80 20 trays 660x820x1750 mm
- Purity C Quell ST 50 filter cartridge
- Sanitizing detergent
Variants
- Floor 20 mm high, ramp included
- Reverse door opening from standard
- Door opening turning and control panel inversion
- Door stop 100°
- Sonda al cuore 3 punti di lettura
- Sonda al cuore riscaldata 1 punto di lettura
- Winter kit -20°C
- Winter kit -40°C
- Other special voltage
Vision Industry W150LK NUVO
W150LKHR-2D
Vision Industry W150LK NUVO
Trolley blast chiller
Pass-Through
remote
Trolley blast chiller
Pass-Through
remote
Features
- Functions Blast chilling, shock freezing, thawing, proving and retarder prover, holding, steam pasteurisation, low temperature steam cooking, steam sanitizing, manual steam cycle
- Control 7" touch screen display with USB port
- Doors Dictator closure to absorb sudden changes in pressure when opening and closing doors
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing Internal and external in “linen canvas” steel
- Inner corners Rounded base 20 mm
- Handle In AISI 304 stainless steel
Constructive Data
- Max capacity 3 trolleys 100x100
- Temperature range -40°+85°C
- Refrigerant unit remote
- Yield +90/+3 600 Kg
- Yield +90/-18 480 Kg
- Cooling gas R404/R452
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 1850×3640×2510 mm
- Packing dimensions N°3× 2755×1980×1690 mm
- Gross weight 1.320 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 13405 W
- Absorbed Current 43,33 A
- Cooling capacity 68940 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Silenced faired remote condensing unit 6FE-44Y
- Faired unit with remote condenser 6FE-44Y
- PVC ventilation profiles W150LK
- Ramp 100 mm high. Length 913 mm W50L
- Ramp 140 mm high. Length 1390 mm W50L
- Trolley GN1/1 20 trays 598x530x1630 mm
- Trolley EN60x40 20 trays 460x620x1750 mm
- Trolley GN2/1 20 trays 660x720x1750 mm
- Trolley EN60x80 20 trays 660x820x1750 mm
- Purity C Quell ST 50 filter cartridge
- Sanitizing detergent
Variants
- Floor 20 mm high, ramp included
- Reverse door opening from standard
- Door opening turning and control panel inversion
- Door stop 100°
- Sonda al cuore 3 punti di lettura
- Sonda al cuore riscaldata 1 punto di lettura
- Winter kit -20°C
- Winter kit -40°C
- Other special voltage
