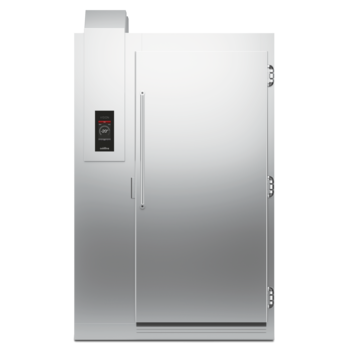

2 trolleys W100 - W101 - W102 - W100L
Vision Industry W100K NUVO
W100KHR-2D
Vision Industry W100K NUVO
Trolley blast chiller
Pass-Through
remote
Trolley blast chiller
Pass-Through
remote
Features
- Functions Blast chilling, shock freezing, thawing, proving and retarder prover, holding, steam pasteurisation, low temperature steam cooking, steam sanitizing, manual steam cycle
- Control 7" touch screen display with USB port
- Doors Chiusura dictator per assorbire gli sbalzi di pressione in occasione di aperture e chiusura porte
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing Internal and external in “linen canvas” steel
- Inner corners Rounded base 20 mm
- Handle In AISI 304 stainless steel
Constructive Data
- Max capacity 2 trolleys GN2/1, EN60x80
- Temperature range -40°+85°C
- Refrigerant unit remote
- Yield +90/+3 320 Kg
- Yield +90/-18 240 Kg
- Cooling gas R404/R452
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 1600×2600×2510 mm
- Packing dimensions 2735×1735×2550 mm
- Gross weight 850 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 7540 W
- Absorbed Current 27,96 A
- Cooling capacity 29880 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Open remote condensing unit 4HE-18Y
- Silenced faired remote condensing unit 4HE-18Y
- Faired unit with remote condenser 4HE-18Y
- PVC ventilation profiles W100K
- Ramp 100 mm high. Length 913 mm W40
- Ramp 140 mm high. Length 1390 mm W40
- Trolley GN1/1 20 trays 598x530x1630 mm
- Trolley EN60x40 20 trays 460x620x1750 mm
- Trolley GN2/1 20 trays 660x720x1750 mm
- Trolley EN60x80 20 trays 660x820x1750 mm
- Purity C Quell ST 50 filter cartridge
- Sanitizing detergent
Variants
- Abbattitore fornito smontato
- Floor 20 mm high, ramp included
- Reverse door opening from standard
- Door opening turning and control panel inversion
- Door stop 100°
- Sonda al cuore 3 punti di lettura
- Sonda al cuore riscaldata 1 punto di lettura
- Winter kit -20°C
- Winter kit -40°C
- Other special voltage
Vision Industry W101K NUVO
W101KHR-2D
Vision Industry W101K NUVO
Trolley blast chiller
Pass-Through
remote
Trolley blast chiller
Pass-Through
remote
Features
- Functions Blast chilling, shock freezing, thawing, proving and retarder prover, holding, steam pasteurisation, low temperature steam cooking, steam sanitizing, manual steam cycle
- Control 7" touch screen display with USB port
- Doors Chiusura dictator per assorbire gli sbalzi di pressione in occasione di aperture e chiusura porte
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing Internal and external in “linen canvas” steel
- Inner corners Rounded base 20 mm
- Handle In AISI 304 stainless steel
Constructive Data
- Max capacity 2 trolleys GN2/1, EN60x80
- Temperature range -40°+85°C
- Refrigerant unit remote
- Yield +90/+3 400 Kg
- Yield +90/-18 320 Kg
- Cooling gas R404/R452
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 1600×2600×2510 mm
- Packing dimensions 2735×1735×2550 mm
- Gross weight 860 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 7540 W
- Absorbed Current 27,96 A
- Cooling capacity 41220 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Open remote condensing unit 4GE-23Y
- Silenced faired remote condensing unit 4GE-23Y
- Faired unit with remote condenser 4GE-23Y
- PVC ventilation profiles W100K
- Ramp 100 mm high. Length 913 mm W40
- Ramp 140 mm high. Length 1390 mm W40
- Trolley GN1/1 20 trays 598x530x1630 mm
- Trolley EN60x40 20 trays 460x620x1750 mm
- Trolley GN2/1 20 trays 660x720x1750 mm
- Trolley EN60x80 20 trays 660x820x1750 mm
- Purity C Quell ST 50 filter cartridge
- Sanitizing detergent
Variants
- Abbattitore fornito smontato
- Floor 20 mm high, ramp included
- Reverse door opening from standard
- Door opening turning and control panel inversion
- Door stop 100°
- Sonda al cuore 3 punti di lettura
- Sonda al cuore riscaldata 1 punto di lettura
- Winter kit -20°C
- Winter kit -40°C
- Other special voltage
Vision Industry W102K NUVO
W102KHR-2D
Vision Industry W102K NUVO
Trolley blast chiller
Pass-Through
remote
Trolley blast chiller
Pass-Through
remote
Features
- Functions Blast chilling, shock freezing, thawing, proving and retarder prover, holding, steam pasteurisation, low temperature steam cooking, steam sanitizing, manual steam cycle
- Control 7" touch screen display with USB port
- Doors Chiusura dictator per assorbire gli sbalzi di pressione in occasione di aperture e chiusura porte
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing Internal and external in “linen canvas” steel
- Inner corners Rounded base 20 mm
- Handle In AISI 304 stainless steel
Constructive Data
- Max capacity 2 trolleys GN2/1, EN60x80
- Temperature range -40°+85°C
- Refrigerant unit remote
- Yield +90/+3 520 Kg
- Yield +90/-18 400 Kg
- Cooling gas R404/R452
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 1600×2600×2510 mm
- Packing dimensions 2735×1735×2550 mm
- Gross weight 866 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 9270 W
- Absorbed Current 30,32 A
- Cooling capacity 45960 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Silenced faired remote condensing unit 4FE-28Y
- Faired unit with remote condenser 4FE-28Y
- PVC ventilation profiles W100K
- Ramp 100 mm high. Length 913 mm W40
- Ramp 140 mm high. Length 1390 mm W40
- Trolley GN1/1 20 trays 598x530x1630 mm
- Trolley EN60x40 20 trays 460x620x1750 mm
- Trolley GN2/1 20 trays 660x720x1750 mm
- Trolley EN60x80 20 trays 660x820x1750 mm
- Purity C Quell ST 50 filter cartridge
- Sanitizing detergent
Variants
- Abbattitore fornito smontato
- Floor 20 mm high, ramp included
- Reverse door opening from standard
- Door opening turning and control panel inversion
- Door stop 100°
- Sonda al cuore 3 punti di lettura
- Sonda al cuore riscaldata 1 punto di lettura
- Winter kit -20°C
- Winter kit -40°C
- Other special voltage
Vision IndustryW100LK NUVO
W100LKHR-2D
Vision IndustryW100LK NUVO
Trolley blast chiller
Pass-Through
remote
Trolley blast chiller
Pass-Through
remote
Features
- Functions Blast chilling, shock freezing, thawing, proving and retarder prover, holding, steam pasteurisation, low temperature steam cooking, steam sanitizing, manual steam cycle
- Control 7" touch screen display with USB port
- Doors Chiusura dictator per assorbire gli sbalzi di pressione in occasione di aperture e chiusura porte
- Door gasket Magnetic, triple chamber and easily replaceable
- Probe Needle probe with 1 reading point, quick-release and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing Internal and external in “linen canvas” steel
- Inner corners Rounded base 20 mm
- Handle In AISI 304 stainless steel
Constructive Data
- Max capacity 2 trolleys 100x100
- Temperature range -40°+85°C
- Refrigerant unit remote
- Yield +90/+3 400 Kg
- Yield +90/-18 320 Kg
- Cooling gas R404/R452
- Defrost Forced air
- Valve Electronic expansion valve
- Dimensions 1850×2600×2510 mm
- Packing dimensions N°2× 2600×2240×1020 mm
- Gross weight 896 Kg
- Voltage 400-415 V - 50-60 Hz
- Total rate 9270 W
- Absorbed Current 30,32 A
- Cooling capacity 45960 W*
- * Evap. -10°C Cond. +45°C
Accessories
- Silenced faired remote condensing unit 4FE-28Y
- Faired unit with remote condenser 4FE-28Y
- PVC ventilation profiles W100LK
- Ramp 100 mm high. Length 913 mm W50L
- Ramp 140 mm high. Length 1390 mm W50L
- Trolley GN1/1 20 trays 598x530x1630 mm
- Trolley EN60x40 20 trays 460x620x1750 mm
- Trolley GN2/1 20 trays 660x720x1750 mm
- Trolley EN60x80 20 trays 660x820x1750 mm
- Purity C Quell ST 50 filter cartridge
- Sanitizing detergent
Variants
- Floor 20 mm high, ramp included
- Reverse door opening from standard
- Door opening turning and control panel inversion
- Door stop 100°
- Sonda al cuore 3 punti di lettura
- Sonda al cuore riscaldata 1 punto di lettura
- Winter kit -20°C
- Winter kit -40°C
- Other special voltage
