4 doors remote

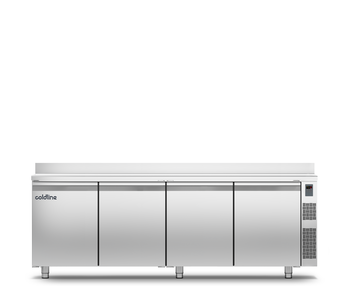

Pastry EN60x40 counter 4 doors
TA21/1BJR-710
Pastry EN60x40 counter 4 doors
-15°-22°C
top with splashback h. 710 mm
remote
-15°-22°C
top with splashback h. 710 mm
remote
Features
- Standard equipment 16 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 4 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top and splashback
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 825 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a
- Defrost Electric
- Body height 710 mm
- Valve Supplied standard with solenoid
- Dimensions 2350×800×950 mm
- Packing dimensions 2655×900×998 mm
- Gross weight 195 Kg
- Voltage 220-240 V - 50-60 Hz
- Total rate 970 W
- Absorbed Current 4,4 A
- Cooling capacity 646 W*
- * Evap. -30°C Cond. +55°C
Accessories
- Remote condensing unit NT2180GK
- Adjustable feet h 145/195 mm
- 6 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Removable plinth EN 4DR h 50 mm
- Removable plinth EN 4DR h 100 mm
- Removable plinth EN 4DR h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Common technical compartment
- Counters without a technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Predisposition for connection to CO2 remote control unit
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback

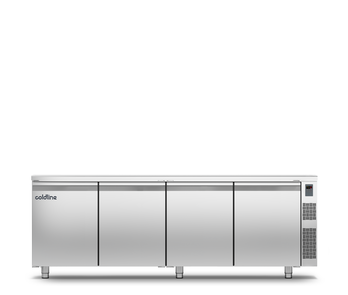

Pastry EN60x40 counter 4 doors
TP21/1BJR-710
Pastry EN60x40 counter 4 doors
-15°-22°C
with top h. 710 mm
remote
-15°-22°C
with top h. 710 mm
remote
Features
- Standard equipment 16 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 4 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 825 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a
- Defrost Electric
- Body height 710 mm
- Valve Supplied standard with solenoid
- Dimensions 2350×800×850 mm
- Packing dimensions 2655×900×998 mm
- Gross weight 190 Kg
- Voltage 220-240 V - 50-60 Hz
- Total rate 970 W
- Absorbed Current 4,4 A
- Cooling capacity 646 W*
- * Evap. -30°C Cond. +55°C
Accessories
- Remote condensing unit NT2180GK
- Adjustable feet h 145/195 mm
- 6 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Removable plinth EN 4DR h 50 mm
- Removable plinth EN 4DR h 100 mm
- Removable plinth EN 4DR h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Common technical compartment
- Counters without a technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Predisposition for connection to CO2 remote control unit
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
Pastry EN60x40 counter 4 doors
TS21/1BJR-710
Pastry EN60x40 counter 4 doors
-15°-22°C
without top h. 710 mm
remote
-15°-22°C
without top h. 710 mm
remote
Features
- Standard equipment 16 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 4 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top Without top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 825 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a
- Defrost Electric
- Body height 710 mm
- Valve Supplied standard with solenoid
- Dimensions 2350×780×810 mm
- Packing dimensions 2655×900×998 mm
- Gross weight 160 Kg
- Voltage 220-240 V - 50-60 Hz
- Total rate 970 W
- Absorbed Current 4,4 A
- Cooling capacity 646 W*
- * Evap. -30°C Cond. +55°C
Accessories
- Remote condensing unit NT2180GK
- Adjustable feet h 145/195 mm
- 6 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Removable plinth EN 4DR h 50 mm
- Removable plinth EN 4DR h 100 mm
- Removable plinth EN 4DR h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Common technical compartment
- Counters without a technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Predisposition for connection to CO2 remote control unit
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
Pastry EN60x40 counter 4 doors
TA21/1BJR-760
Pastry EN60x40 counter 4 doors
-15°-22°C
top with splashback h. 760 mm
remote
-15°-22°C
top with splashback h. 760 mm
remote
Features
- Standard equipment 16 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 4 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top and splashback
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 894 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a
- Defrost Electric
- Body height 760 mm
- Valve Supplied standard with solenoid
- Dimensions 2350×800×1000 mm
- Packing dimensions 2655×900×998 mm
- Gross weight 207 Kg
- Voltage 220-240 V - 50-60 Hz
- Total rate 970 W
- Absorbed Current 4,4 A
- Cooling capacity 646 W*
- * Evap. -30°C Cond. +55°C
Accessories
- Remote condensing unit NT2180GK
- Adjustable feet h 145/195 mm
- 6 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Removable plinth EN 4DR h 50 mm
- Removable plinth EN 4DR h 100 mm
- Removable plinth EN 4DR h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Common technical compartment
- Counters without a technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Predisposition for connection to CO2 remote control unit
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
Pastry EN60x40 counter 4 doors
TP21/1BJR-760
Pastry EN60x40 counter 4 doors
-15°-22°C
with top h. 760 mm
remote
-15°-22°C
with top h. 760 mm
remote
Features
- Standard equipment 16 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 4 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 894 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a
- Defrost Electric
- Body height 760 mm
- Valve Supplied standard with solenoid
- Dimensions 2350×800×900 mm
- Packing dimensions 2655×900×998 mm
- Gross weight 202 Kg
- Voltage 220-240 V - 50-60 Hz
- Total rate 970 W
- Absorbed Current 4,4 A
- Cooling capacity 646 W*
- * Evap. -30°C Cond. +55°C
Accessories
- Remote condensing unit NT2180GK
- Adjustable feet h 145/195 mm
- 6 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Removable plinth EN 4DR h 50 mm
- Removable plinth EN 4DR h 100 mm
- Removable plinth EN 4DR h 150 mm
Variants
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Common technical compartment
- Counters without a technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Predisposition for connection to CO2 remote control unit
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
- Granite worktop with splashback
Pastry EN60x40 counter 4 doors
TS21/1BJR-760
Pastry EN60x40 counter 4 doors
-15°-22°C
without top h. 760 mm
remote
-15°-22°C
without top h. 760 mm
remote
Features
- Standard equipment 16 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 4 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top Without top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 894 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a
- Defrost Electric
- Body height 760 mm
- Valve Supplied standard with solenoid
- Dimensions 2350×780×860 mm
- Packing dimensions 2655×900×998 mm
- Gross weight 172 Kg
- Voltage 220-240 V - 50-60 Hz
- Total rate 970 W
- Absorbed Current 4,4 A
- Cooling capacity 646 W*
- * Evap. -30°C Cond. +55°C
Accessories
- Remote condensing unit NT2180GK
- Adjustable feet h 145/195 mm
- 6 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Removable plinth EN 4DR h 50 mm
- Removable plinth EN 4DR h 100 mm
- Removable plinth EN 4DR h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Common technical compartment
- Counters without a technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Predisposition for connection to CO2 remote control unit
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
Pastry EN60x40 counter 4 doors
TA21/1BJR-660
Pastry EN60x40 counter 4 doors
-15°-22°C
top with splashback h. 660 mm
remote
-15°-22°C
top with splashback h. 660 mm
remote
Features
- Standard equipment 16 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 4 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top and splashback
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 757 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a
- Defrost Electric
- Body height 660 mm
- Valve Supplied standard with solenoid
- Dimensions 2350×800×900 mm
- Packing dimensions 2655×900×998 mm
- Gross weight 183 Kg
- Voltage 220-240 V - 50-60 Hz
- Total rate 970 W
- Absorbed Current 4,4 A
- Cooling capacity 646 W*
- * Evap. -30°C Cond. +55°C
Accessories
- Remote condensing unit NT2180GK
- Adjustable feet h 145/195 mm
- 6 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Removable plinth EN 4DR h 50 mm
- Removable plinth EN 4DR h 100 mm
- Removable plinth EN 4DR h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Common technical compartment
- Counters without a technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Predisposition for connection to CO2 remote control unit
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
Pastry EN60x40 counter 4 doors
TP21/1BJR-660
Pastry EN60x40 counter 4 doors
-15°-22°C
with top h. 660 mm
remote
-15°-22°C
with top h. 660 mm
remote
Features
- Standard equipment 16 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 4 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 757 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a
- Defrost Electric
- Body height 660 mm
- Valve Supplied standard with solenoid
- Dimensions 2350×800×800 mm
- Packing dimensions 2655×900×998 mm
- Gross weight 178 Kg
- Voltage 220-240 V - 50-60 Hz
- Total rate 970 W
- Absorbed Current 4,4 A
- Cooling capacity 646 W*
- * Evap. -30°C Cond. +55°C
Accessories
- Remote condensing unit NT2180GK
- Adjustable feet h 145/195 mm
- 6 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Removable plinth EN 4DR h 50 mm
- Removable plinth EN 4DR h 100 mm
- Removable plinth EN 4DR h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Common technical compartment
- Counters without a technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Predisposition for connection to CO2 remote control unit
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
Pastry EN60x40 counter 4 doors
TS21/1BJR-660
Pastry EN60x40 counter 4 doors
-15°-22°C
without top h. 660 mm
remote
-15°-22°C
without top h. 660 mm
remote
Features
- Standard equipment 16 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 4 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top Without top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 757 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a
- Defrost Electric
- Body height 660 mm
- Valve Supplied standard with solenoid
- Dimensions 2350×780×760 mm
- Packing dimensions 2655×900×998 mm
- Gross weight 148 Kg
- Voltage 220-240 V - 50-60 Hz
- Total rate 970 W
- Absorbed Current 4,4 A
- Cooling capacity 646 W*
- * Evap. -30°C Cond. +55°C
Accessories
- Remote condensing unit NT2180GK
- Adjustable feet h 145/195 mm
- 6 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Removable plinth EN 4DR h 50 mm
- Removable plinth EN 4DR h 100 mm
- Removable plinth EN 4DR h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Common technical compartment
- Counters without a technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Predisposition for connection to CO2 remote control unit
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
