700

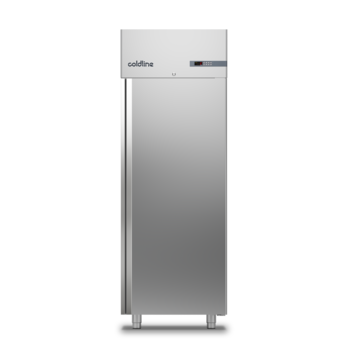

Master 700 cabinet

A70/1N
Master 700 cabinet
0°+10°C
1 door
0°+10°C
1 door
Features
- Standard equipment 3 slides for GN2/1 shelves, 3 plastic coated GN2/1 shelves, lock with key, LED lighting
- Control Electronic, display flush with the panel
- Doors 1 door, self-closing with a 105° stop, right hinged
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 75 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel. Back, base and internal technical compartment in galvanized/colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 601 lt
- Temperature range 0°+10°C
- Refrigerant unit Plug-in
- Energetic class A
- Energy efficiency index 24.3
- Annual consumption 327 kW/h annum
- 24h consumption 0,896 kW/h/24h
- Climate class 5
- Cooling gas R290 (GWP=3)
- Refrigerant Charge 90g
- Defrost Off cycle automatic
- Valve Supplied standard with solenoid
- Dimensions 740×815×2085 mm
- Packing dimensions 835×930×2138 mm
- Net / gross weight 135 Kg / 155 Kg
- Net / gross volume 450 lt / 601 lt
- Voltage 220-240 V - 50 Hz
- Total rate 220W - 1,0A
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Foot pedal kit
- 4 Swivel and brake castors h 128 mm
- Stainless steel shelf GN2/1
- Plastic coated shelf GN2/1
- Pair of type C slides 605 mm
- Stainless steel drawer, h 150 mm 700/1400
- Bottles shelf, stainless steel coating for shelf 700/1400
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
Variants
- Special rack kit for drawers and shelves
- Alimentazione frequenza 60Hz
- Other special voltage
- Half doors
- Frame for fixed masonry plinth
- RAL customisable colouring
- Master Marine solutions
- Predisposition for connection to CO2 remote control unit
Master 700 cabinet

A70/1NR
Master 700 cabinet
0°+10°C
1 door remote
0°+10°C
1 door remote
Features
- Standard equipment 3 slides for GN2/1 shelves, 3 plastic coated GN2/1 shelves, lock with key, LED lighting
- Control Electronic, display flush with the panel
- Doors 1 door, self-closing with a 105° stop, right hinged
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 75 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel. Back, base and internal technical compartment in galvanized/colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 601 lt
- Temperature range 0°+10°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Off cycle automatic
- Valve Supplied standard with solenoid
- Dimensions 740×815×2085 mm
- Packing dimensions 835×930×2138 mm
- Net / gross weight 120 Kg / 140 Kg
- Net / gross volume 450 lt / 601 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 220W - 1,0A
- Cooling capacity 448 W*
- * Evap. -10°C Cond. +55°C
- Pipe delivery Ø 1/4"
- Pipe suction Ø 3/8"
Accessories
- Remote condensing unit NEK6210GK
- Foot pedal kit
- 4 Swivel and brake castors h 128 mm
- Stainless steel shelf GN2/1
- Plastic coated shelf GN2/1
- Pair of type C slides 605 mm
- Stainless steel drawer, h 150 mm 700/1400
- Bottles shelf, stainless steel coating for shelf 700/1400
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
Variants
- Special rack kit for drawers and shelves
- Alimentazione frequenza 60Hz
- Other special voltage
- Half doors
- Frame for fixed masonry plinth
- RAL customisable colouring
- Master Marine solutions
- Predisposition for connection to CO2 remote control unit
Master 700 cabinet

A70/1NV
Master 700 cabinet
0°+10°C
1 glass door
0°+10°C
1 glass door
Features
- Standard equipment 3 slides for GN2/1 shelves, 3 plastic coated GN2/1 shelves, lock with key, LED lighting
- Control Electronic, display flush with the panel
- Doors 1 aluminium door, self-closing with 105° latch, right-hand hinges
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 75 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel. Back, base and internal technical compartment in galvanized/colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 601 lt
- Temperature range 0°+10°C
- Refrigerant unit Plug-in
- Energetic class B
- Energy efficiency index 28,3
- Annual consumption 381 kW/h annum
- 24h consumption 1,043 kW/h/24h
- Climate class 4
- Cooling gas R290 (GWP=3)
- Refrigerant Charge 105g
- Defrost Off cycle automatic
- Valve Supplied standard with solenoid
- Dimensions 740×815×2085 mm
- Packing dimensions 835×930×2138 mm
- Net / gross weight 150 Kg / 170 Kg
- Net / gross volume 450 lt / 601 lt
- Voltage 220-240 V - 50 Hz
- Total rate 260W - 1,2A
- Cooling capacity 533 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Foot pedal kit
- 4 Swivel and brake castors h 128 mm
- Stainless steel shelf GN2/1
- Plastic coated shelf GN2/1
- Pair of type C slides 605 mm
- Stainless steel drawer, h 150 mm 700/1400
- Bottles shelf, stainless steel coating for shelf 700/1400
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
Variants
- Special rack kit for drawers and shelves
- Alimentazione frequenza 60Hz
- Other special voltage
- Half doors
- Frame for fixed masonry plinth
- RAL customisable colouring
- Master Marine solutions
- Predisposition for connection to CO2 remote control unit
Master 700 cabinet

A70/1NRV
Master 700 cabinet
0°+10°C
1 glass door remote
0°+10°C
1 glass door remote
Features
- Standard equipment 3 slides for GN2/1 shelves, 3 plastic coated GN2/1 shelves, lock with key, LED lighting
- Control Electronic, display flush with the panel
- Doors 1 aluminium door, self-closing with 105° latch, right-hand hinges
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 75 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel. Back, base and internal technical compartment in galvanized/colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 601 lt
- Temperature range 0°+10°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Off cycle automatic
- Valve Supplied standard with solenoid
- Dimensions 740×815×2085 mm
- Packing dimensions 835×930×2138 mm
- Net / gross weight 135 Kg / 155 Kg
- Net / gross volume 450 lt / 601 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 220W - 1,0A
- Cooling capacity 668 W*
- * Evap. -10°C Cond. +55°C
- Pipe delivery Ø 1/4"
- Pipe suction Ø 3/8"
Accessories
- Remote condensing unit NEK6210GK
- Foot pedal kit
- 4 Swivel and brake castors h 128 mm
- Stainless steel shelf GN2/1
- Plastic coated shelf GN2/1
- Pair of type C slides 605 mm
- Stainless steel drawer, h 150 mm 700/1400
- Bottles shelf, stainless steel coating for shelf 700/1400
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
Variants
- Special rack kit for drawers and shelves
- Alimentazione frequenza 60Hz
- Other special voltage
- Half doors
- Frame for fixed masonry plinth
- RAL customisable colouring
- Master Marine solutions
- Predisposition for connection to CO2 remote control unit
Master 700 cabinet

A70/1M
Master 700 cabinet
-2°+8°C
1 door
-2°+8°C
1 door
Features
- Standard equipment 3 slides for GN2/1 shelves, 3 plastic coated GN2/1 shelves, lock with key, LED lighting
- Control Electronic, display flush with the panel
- Doors 1 door, self-closing with a 105° stop, right hinged
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 75 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel. Back, base and internal technical compartment in galvanized/colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 601 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Energetic class A
- Energy efficiency index 24,9
- Annual consumption 335 kW/h annum
- 24h consumption 0,918 kW/h/24h
- Climate class 5
- Cooling gas R290 (GWP=3)
- Refrigerant Charge 90g
- Defrost Hot gas
- Valve Supplied standard with solenoid
- Dimensions 740×815×2085 mm
- Packing dimensions 835×930×2138 mm
- Net / gross weight 135 Kg / 155 Kg
- Net / gross volume 450 lt / 601 lt
- Voltage 220-240 V - 50 Hz
- Total rate 220W - 1,0A
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Foot pedal kit
- 4 Swivel and brake castors h 128 mm
- Stainless steel shelf GN2/1
- Plastic coated shelf GN2/1
- Pair of type C slides 605 mm
- Stainless steel drawer, h 150 mm 700/1400
- Bottles shelf, stainless steel coating for shelf 700/1400
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
Variants
- Special rack kit for drawers and shelves
- Alimentazione frequenza 60Hz
- Other special voltage
- Half doors
- Frame for fixed masonry plinth
- RAL customisable colouring
- Master Marine solutions
- Predisposition for connection to CO2 remote control unit
- Plug-in water unit
Master 700 cabinet

A70/1MR
Master 700 cabinet
-2°+8°C
1 door remote
-2°+8°C
1 door remote
Features
- Standard equipment 3 slides for GN2/1 shelves, 3 plastic coated GN2/1 shelves, lock with key, LED lighting
- Control Electronic, display flush with the panel
- Doors 1 door, self-closing with a 105° stop, right hinged
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 75 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel. Back, base and internal technical compartment in galvanized/colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 601 lt
- Temperature range -2°+8°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Valve Supplied standard with solenoid
- Dimensions 740×815×2085 mm
- Packing dimensions 835×930×2138 mm
- Net / gross weight 120 Kg / 140 Kg
- Net / gross volume 450 lt / 601 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 710W - 3,3A
- Cooling capacity 448 W*
- * Evap. -10°C Cond. +55°C
- Pipe delivery Ø 1/4"
- Pipe suction Ø 3/8"
Accessories
- Remote condensing unit NEK6210GK
- Foot pedal kit
- 4 Swivel and brake castors h 128 mm
- Stainless steel shelf GN2/1
- Plastic coated shelf GN2/1
- Pair of type C slides 605 mm
- Stainless steel drawer, h 150 mm 700/1400
- Bottles shelf, stainless steel coating for shelf 700/1400
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- R134a valve
Variants
- Special rack kit for drawers and shelves
- Alimentazione frequenza 60Hz
- Other special voltage
- Half doors
- Frame for fixed masonry plinth
- RAL customisable colouring
- Master Marine solutions
- Predisposition for connection to CO2 remote control unit
Master 700 cabinet

A70/1MV
Master 700 cabinet
-2°+8°C
1 glass door
-2°+8°C
1 glass door
Features
- Standard equipment 3 slides for GN2/1 shelves, 3 plastic coated GN2/1 shelves, lock with key, LED lighting
- Control Electronic, display flush with the panel
- Doors 1 aluminium door, self-closing with 105° latch, right-hand hinges
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 75 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel. Back, base and internal technical compartment in galvanized/colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 601 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Energetic class B
- Energy efficiency index 28,9
- Annual consumption 389 kW/h annum
- 24h consumption 1,065 kW/h/24h
- Climate class 4
- Cooling gas R290 (GWP=3)
- Refrigerant Charge 105g
- Defrost Hot gas
- Valve Supplied standard with solenoid
- Dimensions 740×815×2085 mm
- Packing dimensions 835×930×2138 mm
- Net / gross weight 150 Kg / 170 Kg
- Net / gross volume 450 lt / 601 lt
- Voltage 220-240 V - 50 Hz
- Total rate 260W - 1,2A
- Cooling capacity 533 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Foot pedal kit
- 4 Swivel and brake castors h 128 mm
- Stainless steel shelf GN2/1
- Plastic coated shelf GN2/1
- Pair of type C slides 605 mm
- Stainless steel drawer, h 150 mm 700/1400
- Bottles shelf, stainless steel coating for shelf 700/1400
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
Variants
- Special rack kit for drawers and shelves
- Alimentazione frequenza 60Hz
- Other special voltage
- Half doors
- Frame for fixed masonry plinth
- RAL customisable colouring
- Master Marine solutions
- Predisposition for connection to CO2 remote control unit
- Plug-in water unit
Master 700 cabinet

A70/1MRV
Master 700 cabinet
-2°+8°C
1 glass door remote
-2°+8°C
1 glass door remote
Features
- Standard equipment 3 slides for GN2/1 shelves, 3 plastic coated GN2/1 shelves, lock with key, LED lighting
- Control Electronic, display flush with the panel
- Doors 1 aluminium door, self-closing with 105° latch, right-hand hinges
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 75 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel. Back, base and internal technical compartment in galvanized/colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 601 lt
- Temperature range -2°+8°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Valve Supplied standard with solenoid
- Dimensions 740×815×2085 mm
- Packing dimensions 835×930×2138 mm
- Net / gross weight 135 Kg / 155 Kg
- Net / gross volume 450 lt / 601 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 710W - 3,3A
- Cooling capacity 668 W*
- * Evap. -10°C Cond. +55°C
- Pipe delivery Ø 1/4"
- Pipe suction Ø 3/8"
Accessories
- Remote condensing unit NEK6210GK
- Foot pedal kit
- 4 Swivel and brake castors h 128 mm
- Stainless steel shelf GN2/1
- Plastic coated shelf GN2/1
- Pair of type C slides 605 mm
- Stainless steel drawer, h 150 mm 700/1400
- Bottles shelf, stainless steel coating for shelf 700/1400
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- R134a valve
Variants
- Special rack kit for drawers and shelves
- Alimentazione frequenza 60Hz
- Other special voltage
- Half doors
- Frame for fixed masonry plinth
- RAL customisable colouring
- Master Marine solutions
- Predisposition for connection to CO2 remote control unit
Master 700 cabinet

A70/1B
Master 700 cabinet
-18°-22°C
1 door
-18°-22°C
1 door
Features
- Standard equipment 3 slides for GN2/1 shelves, 3 plastic coated GN2/1 shelves, lock with key, LED lighting
- Control Electronic, display flush with the panel
- Doors 1 door, self-closing with a 105° stop, right hinged
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 75 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel. Back, base and internal technical compartment in galvanized/colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 601 lt
- Temperature range -18°-22°C
- Refrigerant unit Plug-in
- Energetic class C
- Energy efficiency index 49,4
- Annual consumption 1821 kW/h annum
- 24h consumption 4,99 kW/h/24h
- Climate class 5
- Cooling gas R290 (GWP=3)
- Refrigerant Charge 85g
- Defrost Hot gas
- Valve Supplied standard with solenoid
- Dimensions 740×815×2085 mm
- Packing dimensions 835×930×2138 mm
- Net / gross weight 140 Kg / 160 Kg
- Net / gross volume 450 lt / 601 lt
- Voltage 220-240 V - 50 Hz
- Total rate 810W - 3,7A
- Cooling capacity 305 W*
- * Evap. -30°C Cond. +55°C
Master 700 cabinet

A70/1BR
Master 700 cabinet
-18°-22°C
1 door remote
-18°-22°C
1 door remote
Features
- Standard equipment 3 slides for GN2/1 shelves, 3 plastic coated GN2/1 shelves, lock with key, LED lighting
- Control Electronic, display flush with the panel
- Doors 1 door, self-closing with a 105° stop, right hinged
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 75 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel. Back, base and internal technical compartment in galvanized/colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 601 lt
- Temperature range -18°-22°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Valve Supplied standard with solenoid
- Dimensions 740×815×2085 mm
- Packing dimensions 835×930×2138 mm
- Net / gross weight 120 Kg / 140 Kg
- Net / gross volume 450 lt / 601 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 970W - 4,4A
- Cooling capacity 646 W*
- * Evap. -30°C Cond. +55°C
- Pipe delivery Ø 3/8"
- Pipe suction Ø 3/8"
Accessories
- Remote condensing unit NT2180GK
- Foot pedal kit
- 4 Swivel and brake castors h 128 mm
- Stainless steel shelf GN2/1
- Plastic coated shelf GN2/1
- Pair of type C slides 605 mm
- Stainless steel drawer, h 150 mm 700/1400
- Bottles shelf, stainless steel coating for shelf 700/1400
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
Variants
- Special rack kit for drawers and shelves
- Alimentazione frequenza 60Hz
- Other special voltage
- Half doors
- Frame for fixed masonry plinth
- RAL customisable colouring
- Master Marine solutions
- Predisposition for connection to CO2 remote control unit
- Plug-in water unit
Master 700 cabinet

A70/1BV
Master 700 cabinet
-18°-22°C
1 glass door
-18°-22°C
1 glass door
Features
- Standard equipment 3 slides for GN2/1 shelves, 3 plastic coated GN2/1 shelves, lock with key, LED lighting
- Control Electronic, display flush with the panel
- Doors 1 aluminium door, self-closing with 105° latch, right-hand hinges
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 75 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel. Back, base and internal technical compartment in galvanized/colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 601 lt
- Temperature range -18°-22°C
- Refrigerant unit Plug-in
- Energetic class E
- Energy efficiency index 83,6
- Annual consumption 3083 kW/h annum
- 24h consumption 8,446 kW/h/24h
- Climate class 4
- Cooling gas R290 (GWP=3)
- Refrigerant Charge 150g
- Defrost Hot gas
- Valve Supplied standard with solenoid
- Dimensions 740×815×2085 mm
- Packing dimensions 835×930×2138 mm
- Net / gross weight 155 Kg / 175 Kg
- Net / gross volume 450 lt / 601 lt
- Voltage 220-240 V - 50 Hz
- Total rate 1000W - 4,6A
- Cooling capacity 453 W*
- * Evap. -30°C Cond. +55°C
Accessories
- Foot pedal kit
- 4 Swivel and brake castors h 128 mm
- Stainless steel shelf GN2/1
- Plastic coated shelf GN2/1
- Pair of type C slides 605 mm
- Stainless steel drawer, h 150 mm 700/1400
- Bottles shelf, stainless steel coating for shelf 700/1400
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
Variants
- Special rack kit for drawers and shelves
- Alimentazione frequenza 60Hz
- Other special voltage
- Half doors
- Frame for fixed masonry plinth
- RAL customisable colouring
- Master Marine solutions
- Predisposition for connection to CO2 remote control unit
- Plug-in water unit
Master 700 cabinet

A70/1BRV
Master 700 cabinet
-18°-22°C
1 glass door remote
-18°-22°C
1 glass door remote
Features
- Standard equipment 3 slides for GN2/1 shelves, 3 plastic coated GN2/1 shelves, lock with key, LED lighting
- Control Electronic, display flush with the panel
- Doors 1 aluminium door, self-closing with 105° latch, right-hand hinges
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 75 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel. Back, base and internal technical compartment in galvanized/colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 601 lt
- Temperature range -18°-22°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Valve Supplied standard with solenoid
- Dimensions 740×815×2085 mm
- Packing dimensions 835×930×2138 mm
- Net / gross weight 135 Kg / 155 Kg
- Net / gross volume 450 lt / 601 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 1000W - 4,6A
- Cooling capacity 646 W*
- * Evap. -30°C Cond. +55°C
- Pipe delivery Ø 3/8"
- Pipe suction Ø 3/8"
Accessories
- Remote condensing unit NT2180GK
- Foot pedal kit
- 4 Swivel and brake castors h 128 mm
- Stainless steel shelf GN2/1
- Plastic coated shelf GN2/1
- Pair of type C slides 605 mm
- Stainless steel drawer, h 150 mm 700/1400
- Bottles shelf, stainless steel coating for shelf 700/1400
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
Variants
- Special rack kit for drawers and shelves
- Alimentazione frequenza 60Hz
- Other special voltage
- Half doors
- Frame for fixed masonry plinth
- RAL customisable colouring
- Master Marine solutions
- Predisposition for connection to CO2 remote control unit
- Plug-in water unit
Master 700 cabinet

A70/1BS
Master 700 cabinet
-18°-22°C
1 door
High Performance
-18°-22°C
1 door
High Performance
Features
- Standard equipment 3 slides for GN2/1 shelves, 3 plastic coated GN2/1 shelves, lock with key, LED lighting
- Control Electronic, display flush with the panel
- Doors 1 door, self-closing with a 105° stop, right hinged
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 75 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel. Back, base and internal technical compartment in galvanized/colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 601 lt
- Temperature range -18°-22°C
- Refrigerant unit Plug-in
- Energetic class D
- Energy efficiency index 49,5
- Annual consumption 2919 kW/h annum
- 24h consumption 7,997 kW/h/24h
- Climate class 5
- Cooling gas R290 (GWP=3)
- Refrigerant Charge 150g
- Defrost Hot gas
- Valve Supplied standard with solenoid
- Dimensions 740×815×2085 mm
- Packing dimensions 835×930×2138 mm
- Net / gross weight 140 Kg / 160 Kg
- Net / gross volume 450 lt / 601 lt
- Voltage 220-240 V - 50 Hz
- Total rate 1000W - 4,6A
- Cooling capacity 692 W*
- * Evap. -30°C Cond. +55°C
Accessories
- Foot pedal kit
- 4 Swivel and brake castors h 128 mm
- Stainless steel shelf GN2/1
- Plastic coated shelf GN2/1
- Pair of type C slides 605 mm
- Stainless steel drawer, h 150 mm 700/1400
- Bottles shelf, stainless steel coating for shelf 700/1400
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
Variants
- Special rack kit for drawers and shelves
- Alimentazione frequenza 60Hz
- Other special voltage
- Half doors
- Frame for fixed masonry plinth
- RAL customisable colouring
- Master Marine solutions
- Predisposition for connection to CO2 remote control unit
- Plug-in water unit
Master 700 cabinet

A70/1BSR
Master 700 cabinet
-18°-22°C
1 door remote
High Performance
-18°-22°C
1 door remote
High Performance
Features
- Standard equipment 3 slides for GN2/1 shelves, 3 plastic coated GN2/1 shelves, lock with key, LED lighting
- Control Electronic, display flush with the panel
- Doors 1 door, self-closing with a 105° stop, right hinged
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 75 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior and interior AISI 304 stainless steel. Back, base and internal technical compartment in galvanized/colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 601 lt
- Temperature range -18°-22°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Valve Supplied standard with solenoid
- Dimensions 740×815×2085 mm
- Packing dimensions 835×930×2138 mm
- Net / gross weight 125 Kg / 145 Kg
- Net / gross volume 450 lt / 601 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 1060W - 4,9A
- Cooling capacity 965 W*
- * Evap. -30°C Cond. +55°C
- Pipe delivery Ø 3/8"
- Pipe suction Ø 3/8"
Accessories
- Foot pedal kit
- 4 Swivel and brake castors h 128 mm
- Stainless steel shelf GN2/1
- Plastic coated shelf GN2/1
- Pair of type C slides 605 mm
- Stainless steel drawer, h 150 mm 700/1400
- Bottles shelf, stainless steel coating for shelf 700/1400
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
Variants
- Special rack kit for drawers and shelves
- Alimentazione frequenza 60Hz
- Other special voltage
- Half doors
- Frame for fixed masonry plinth
- RAL customisable colouring
- Master Marine solutions
- Predisposition for connection to CO2 remote control unit
- Plug-in water unit
