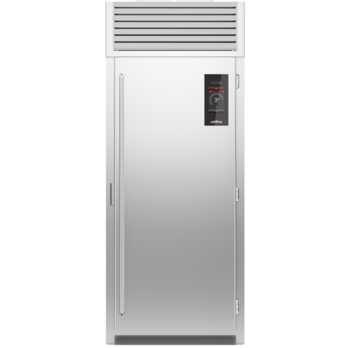

Roll-In trolley 80 trays
Roll-in Vision JC80
JC80/1KMR
Roll-in Vision JC80
-5°+15°C
1 door remote
-5°+15°C
1 door remote
Features
- Functions Storage, chocolate, thawing, ice cream
- Standard equipment LED lighting
- Control 7" touch screen display with USB port
- Doors 1 door, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing One-piece structure in AISI 304 stainless steel. Back in galvanized steel
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Snap-in chrome with integrated lock
Constructive Data
- Max capacity 2 trolleys EN60x40
- Gross capacity 1558 lt
- Temperature range -5°+15°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Valve Supplied standard with solenoid
- Dimensions 960×1276×2465 mm
- Packing dimensions 980×1240×2630 mm
- Gross weight 272 Kg
- Voltage 220-240 V - 50-60 Hz
- Total rate 790 W
- Absorbed Current 3,6 A
- Cooling capacity 1336 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Remote condensing unit NEK6210GK
- Trolley EN60x80 20 trays 660x820x1750 mm
- Serial interface, RS485 cable
Variants
- RAL customisable colouring
- Alimentazione frequenza 60Hz
- Other special voltage
Roll-in Vision JC80
JC80/1KTR
Roll-in Vision JC80
-30°+15°C
1 door remote
-30°+15°C
1 door remote
Features
- Functions Storage, chocolate, thawing, ice cream
- Standard equipment LED lighting
- Control 7" touch screen display with USB port
- Doors 1 door, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing One-piece structure in AISI 304 stainless steel. Back in galvanized steel
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Snap-in chrome with integrated lock
Constructive Data
- Max capacity 2 trolleys EN60x40
- Gross capacity 1558 lt
- Temperature range -30°+15°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Valve Supplied standard with solenoid
- Dimensions 960×1276×2465 mm
- Packing dimensions 980×1240×2630 mm
- Gross weight 272 Kg
- Voltage 220-240 V - 50-60 Hz
- Total rate 790 W
- Absorbed Current 3,6 A
- Cooling capacity 1292 W*
- * Evap. -30°C Cond. +55°C
Accessories
- Remote condensing unit NT2180GK
- Trolley EN60x80 20 trays 660x820x1750 mm
- Serial interface, RS485 cable
Variants
- RAL customisable colouring
- Alimentazione frequenza 60Hz
- Other special voltage
Roll-in Vision JC80
JC80/1KM
Roll-in Vision JC80
-5°+15°C
1 door
-5°+15°C
1 door
Features
- Functions Storage, chocolate, thawing, ice cream
- Standard equipment LED lighting
- Control 7" touch screen display with USB port
- Doors 1 door, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing One-piece structure in AISI 304 stainless steel. Back in galvanized steel
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Snap-in chrome with integrated lock
Constructive Data
- Max capacity 2 trolleys EN60x40
- Gross capacity 1558 lt
- Temperature range -5°+15°C
- Refrigerant unit Plug-in
- Climate class 5
- Cooling gas R290 (GWP=3)
- Defrost Hot gas
- Valve Supplied standard with solenoid
- Dimensions 960×1276×2465 mm
- Packing dimensions 980×1240×2630 mm
- Gross weight 292 Kg
- Voltage 220-240 V - 50 Hz
- Total rate 1740 W
- Absorbed Current 8,0 A
- Cooling capacity 1336 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Trolley EN60x80 20 trays 660x820x1750 mm
- Serial interface, RS485 cable
Variants
- RAL customisable colouring
- Plug-in water unit
- Alimentazione frequenza 60Hz
- Other special voltage
Roll-in Vision JC80
JC80/1KT
Roll-in Vision JC80
-30°+15°C
1 door
-30°+15°C
1 door
Features
- Functions Storage, chocolate, thawing, ice cream
- Standard equipment LED lighting
- Control 7" touch screen display with USB port
- Doors 1 door, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 100 mm thickness - CFC/HCFC free
- Exterior/interior finishing One-piece structure in AISI 304 stainless steel. Back in galvanized steel
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Snap-in chrome with integrated lock
Constructive Data
- Max capacity 2 trolleys EN60x40
- Gross capacity 1558 lt
- Temperature range -30°+15°C
- Refrigerant unit Plug-in
- Climate class 5
- Cooling gas R290 (GWP=3)
- Defrost Hot gas
- Valve Supplied standard with solenoid
- Dimensions 960×1276×2465 mm
- Packing dimensions 980×1240×2630 mm
- Gross weight 312 Kg
- Voltage 220-240 V - 50 Hz
- Total rate 1890 W
- Absorbed Current 8,6 A
- Cooling capacity 1292 W*
- * Evap. -30°C Cond. +55°C
Accessories
- Trolley EN60x80 20 trays 660x820x1750 mm
- Serial interface, RS485 cable
Variants
- RAL customisable colouring
- Plug-in water unit
- Alimentazione frequenza 60Hz
- Other special voltage
