4 doors plug-in GN

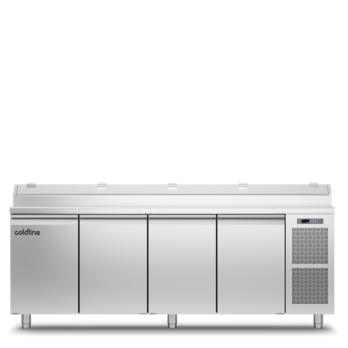

Prep-station GN1/1 counter 4 doors
TV21/1M-1/3-710
Prep-station GN1/1 counter 4 doors
-2°+8°C
stainless steel GN1/3 top h. 710 mm
Plug-in
-2°+8°C
stainless steel GN1/3 top h. 710 mm
Plug-in
Features
- Standard equipment 4 slides, 4 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 4 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 599 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Cooling gas R290 (GWP=3)
- Defrost Hot gas
- Body height 710 mm
- Valve Supplied standard with solenoid
- Dimensions 2260×700×1005 mm
- Packing dimensions 2355×800×998 mm
- Gross weight 230 Kg
- Voltage 220-240 V - 50 Hz
- Total rate 250 W
- Absorbed Current 1,15 A
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 6 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- IP44 schuko socket with cover
- Prep-Station pans kit GN1/3 plug-in, 4D
- Removable plinth GN 4D h 100 mm
- Removable plinth GN 4D h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Special counter body heights 700 mm
- Special counter body heights 750 mm
- Technical compartment on the left
- Special size of technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- LED lighting
- RAL customisable colouring
- Plug-in water unit
- Alimentazione frequenza 60Hz
- Other special voltage

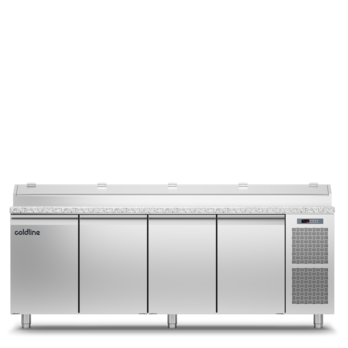

Prep-station GN1/1 counter 4 doors
TVG21/1M-1/3-710
Prep-station GN1/1 counter 4 doors
-2°+8°C
granite GN1/3 top h. 710 mm
Plug-in
-2°+8°C
granite GN1/3 top h. 710 mm
Plug-in
Features
- Standard equipment 4 slides, 4 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 4 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 599 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Cooling gas R290 (GWP=3)
- Defrost Hot gas
- Body height 710 mm
- Valve Supplied standard with solenoid
- Dimensions 2260×700×1005 mm
- Packing dimensions 2355×800×998 mm
- Gross weight 245 Kg
- Voltage 220-240 V - 50 Hz
- Total rate 250 W
- Absorbed Current 1,15 A
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 6 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- IP44 schuko socket with cover
- Prep-Station pans kit GN1/3 plug-in, 4D
- Removable plinth GN 4D h 100 mm
- Removable plinth GN 4D h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Special counter body heights 700 mm
- Special counter body heights 750 mm
- Technical compartment on the left
- Special size of technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- LED lighting
- RAL customisable colouring
- Plug-in water unit
- Alimentazione frequenza 60Hz
- Other special voltage
Prep-station GN1/1 counter 4 doors
TV21/1M-1/3-760
Prep-station GN1/1 counter 4 doors
-2°+8°C
stainless steel GN1/3 top h. 760 mm
Plug-in
-2°+8°C
stainless steel GN1/3 top h. 760 mm
Plug-in
Features
- Standard equipment 4 slides, 4 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 4 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 649 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Cooling gas R290 (GWP=3)
- Defrost Hot gas
- Body height 760 mm
- Valve Supplied standard with solenoid
- Dimensions 2260×700×1055 mm
- Packing dimensions 2355×800×998 mm
- Gross weight 242 Kg
- Voltage 220-240 V - 50 Hz
- Total rate 250 W
- Absorbed Current 1,15 A
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 6 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- IP44 schuko socket with cover
- Prep-Station pans kit GN1/3 plug-in, 4D
- Removable plinth GN 4D h 100 mm
- Removable plinth GN 4D h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Special counter body heights 700 mm
- Special counter body heights 750 mm
- Technical compartment on the left
- Special size of technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- LED lighting
- RAL customisable colouring
- Plug-in water unit
- Alimentazione frequenza 60Hz
- Other special voltage
Prep-station GN1/1 counter 4 doors
TVG21/1M-1/3-760
Prep-station GN1/1 counter 4 doors
-2°+8°C
granite GN1/3 top h. 760 mm
Plug-in
-2°+8°C
granite GN1/3 top h. 760 mm
Plug-in
Features
- Standard equipment 4 slides, 4 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 4 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 649 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Cooling gas R290 (GWP=3)
- Defrost Hot gas
- Body height 760 mm
- Valve Supplied standard with solenoid
- Dimensions 2260×700×1055 mm
- Packing dimensions 2355×800×998 mm
- Gross weight 257 Kg
- Voltage 220-240 V - 50 Hz
- Total rate 250 W
- Absorbed Current 1,15 A
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 6 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- IP44 schuko socket with cover
- Prep-Station pans kit GN1/3 plug-in, 4D
- Removable plinth GN 4D h 100 mm
- Removable plinth GN 4D h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Special counter body heights 700 mm
- Special counter body heights 750 mm
- Technical compartment on the left
- Special size of technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- LED lighting
- RAL customisable colouring
- Plug-in water unit
- Alimentazione frequenza 60Hz
- Other special voltage
Prep-station GN1/1 counter 4 doors
TV21/1M-1/6-710
Prep-station GN1/1 counter 4 doors
-2°+8°C
stainless steel GN1/6 top h. 710 mm
Plug-in
-2°+8°C
stainless steel GN1/6 top h. 710 mm
Plug-in
Features
- Standard equipment 4 slides, 4 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 4 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 599 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Cooling gas R290 (GWP=3)
- Defrost Hot gas
- Body height 710 mm
- Valve Supplied standard with solenoid
- Dimensions 2260×700×1005 mm
- Packing dimensions 2355×800×998 mm
- Gross weight 220 Kg
- Voltage 220-240 V - 50 Hz
- Total rate 250 W
- Absorbed Current 1,15 A
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 6 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- IP44 schuko socket with cover
- Prep-Station pans kit GN1/6 plug-in, 4D
- Removable plinth GN 4D h 100 mm
- Removable plinth GN 4D h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Special counter body heights 700 mm
- Special counter body heights 750 mm
- Technical compartment on the left
- Special size of technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- LED lighting
- RAL customisable colouring
- Plug-in water unit
- Alimentazione frequenza 60Hz
- Other special voltage
Prep-station GN1/1 counter 4 doors
TVG21/1M-1/6-710
Prep-station GN1/1 counter 4 doors
-2°+8°C
granite GN1/6 top h. 710 mm
Plug-in
-2°+8°C
granite GN1/6 top h. 710 mm
Plug-in
Features
- Standard equipment 4 slides, 4 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 4 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 599 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Cooling gas R290 (GWP=3)
- Defrost Hot gas
- Body height 710 mm
- Valve Supplied standard with solenoid
- Dimensions 2260×700×1005 mm
- Packing dimensions 2355×800×998 mm
- Gross weight 235 Kg
- Voltage 220-240 V - 50 Hz
- Total rate 250 W
- Absorbed Current 1,15 A
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 6 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- IP44 schuko socket with cover
- Prep-Station pans kit GN1/6 plug-in, 4D
- Removable plinth GN 4D h 100 mm
- Removable plinth GN 4D h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Special counter body heights 700 mm
- Special counter body heights 750 mm
- Technical compartment on the left
- Special size of technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- LED lighting
- RAL customisable colouring
- Plug-in water unit
- Alimentazione frequenza 60Hz
- Other special voltage
Prep-station GN1/1 counter 4 doors
TV21/1M-1/6-760
Prep-station GN1/1 counter 4 doors
-2°+8°C
stainless steel GN1/6 top h. 760 mm
Plug-in
-2°+8°C
stainless steel GN1/6 top h. 760 mm
Plug-in
Features
- Standard equipment 4 slides, 4 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 4 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 649 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Cooling gas R290 (GWP=3)
- Defrost Hot gas
- Body height 760 mm
- Valve Supplied standard with solenoid
- Dimensions 2260×700×1055 mm
- Packing dimensions 2355×800×998 mm
- Gross weight 232 Kg
- Voltage 220-240 V - 50 Hz
- Total rate 250 W
- Absorbed Current 1,15 A
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 6 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- IP44 schuko socket with cover
- Prep-Station pans kit GN1/6 plug-in, 4D
- Removable plinth GN 4D h 100 mm
- Removable plinth GN 4D h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Special counter body heights 700 mm
- Special counter body heights 750 mm
- Technical compartment on the left
- Special size of technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- LED lighting
- RAL customisable colouring
- Plug-in water unit
- Alimentazione frequenza 60Hz
- Other special voltage
Prep-station GN1/1 counter 4 doors
TVG21/1M-1/6-760
Prep-station GN1/1 counter 4 doors
-2°+8°C
granite GN1/6 top h. 760 mm
Plug-in
-2°+8°C
granite GN1/6 top h. 760 mm
Plug-in
Features
- Standard equipment 4 slides, 4 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 4 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 649 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Cooling gas R290 (GWP=3)
- Defrost Hot gas
- Body height 760 mm
- Valve Supplied standard with solenoid
- Dimensions 2260×700×1055 mm
- Packing dimensions 2355×800×998 mm
- Gross weight 247 Kg
- Voltage 220-240 V - 50 Hz
- Total rate 250 W
- Absorbed Current 1,15 A
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 6 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- IP44 schuko socket with cover
- Prep-Station pans kit GN1/6 plug-in, 4D
- Removable plinth GN 4D h 100 mm
- Removable plinth GN 4D h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Special counter body heights 700 mm
- Special counter body heights 750 mm
- Technical compartment on the left
- Special size of technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- LED lighting
- RAL customisable colouring
- Plug-in water unit
- Alimentazione frequenza 60Hz
- Other special voltage
