4 doors plug-in EN

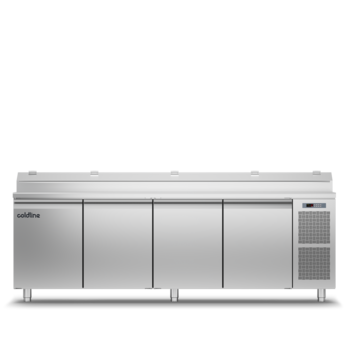

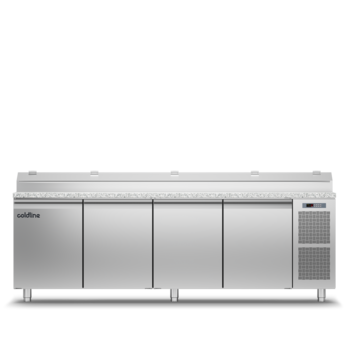

TVG21/1MZ-1/3-710

Features

  • Standard equipment 4 slides, 4 plastic coated EN60x40 shelves
  • Control Electronic, display flush with the panel
  • Doors 4 doors, self-closing, reversible with 105° stop
  • Door gasket Magnetic, triple chamber and easily replaceable
  • Insulation 60 mm thickness - CFC/HCFC free
  • Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
  • Inner corners Rounded for easy cleaning and ensuring maximum hygiene
  • Handle Stainless steel AISI 304, 2 mm thick
  • Racks and slides Stainless steel AISI 304
  • Top With top
  • Feets AISI 304 stainless steel adjustable h 100/150 mm

Constructive Data

  • Gross capacity 825 lt
  • Temperature range -2°+8°C
  • Refrigerant unit Plug-in
  • Cooling gas R290
  • Defrost Hot gas
  • Body height 710 mm
  • Valve Supplied standard with solenoid
  • Dimensions 2560×800×1005 mm
  • Packing dimensions 2655×900×998 mm
  • Gross weight 255 Kg
  • Voltage 220-240 V - 50 Hz
  • Total rate 250 W
  • Absorbed Current 1,15 A
  • Cooling capacity 406 W*
  • * Evap. -10°C Cond. +55°C

Accessories

  • Adjustable feet h 145/195 mm
  • 6 Swivel and brake castors h 128 mm
  • EN drawer reduction kit for GN containers
  • Brackets for GN pans for drawer
  • GN1/2 container + lids kit for drawer, h 150 mm
  • GN1/3 container + lids kit for drawer, h 150 mm
  • Stainless steel shelf EN60x40
  • Plastic coated shelf EN60x40
  • Pair of type L slides 605 mm
  • Serial interface, RS485 cable
  • Cosmo cable connection kit
  • IP44 schuko socket with cover
  • Prep-Station pans kit GN1/3 plug-in, 4D EN
  • Removable plinth EN 4D h 50 mm
  • Removable plinth EN 4D h 100 mm
  • Removable plinth EN 4D h 150 mm

Variants

  • Drawers 1/2
  • Drawers 1/3
  • Drawers 1/3 + 2/3
  • Special counter body heights 700 mm
  • Special counter body heights 750 mm
  • Technical compartment on the left
  • Special size of technical compartment
  • Lock with key for drawer 1/2
  • Lock with key for drawer 1/3
  • Lock with key for drawer 1/3 + 2/3
  • LED lighting
  • RAL customisable colouring
  • Plug-in water unit
  • Alimentazione frequenza 60Hz
  • Other special voltage

TV21/1MZ-1/3-710

Features

  • Standard equipment 4 slides, 4 plastic coated EN60x40 shelves
  • Control Electronic, display flush with the panel
  • Doors 4 doors, self-closing, reversible with 105° stop
  • Door gasket Magnetic, triple chamber and easily replaceable
  • Insulation 60 mm thickness - CFC/HCFC free
  • Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
  • Inner corners Rounded for easy cleaning and ensuring maximum hygiene
  • Handle Stainless steel AISI 304, 2 mm thick
  • Racks and slides Stainless steel AISI 304
  • Top With top
  • Feets AISI 304 stainless steel adjustable h 100/150 mm

Constructive Data

  • Gross capacity 825 lt
  • Temperature range -2°+8°C
  • Refrigerant unit Plug-in
  • Cooling gas R290
  • Defrost Hot gas
  • Body height 710 mm
  • Valve Supplied standard with solenoid
  • Dimensions 2560×800×1005 mm
  • Packing dimensions 2655×900×998 mm
  • Gross weight 240 Kg
  • Voltage 220-240 V - 50 Hz
  • Total rate 250 W
  • Absorbed Current 1,15 A
  • Cooling capacity 406 W*
  • * Evap. -10°C Cond. +55°C

Accessories

  • Adjustable feet h 145/195 mm
  • 6 Swivel and brake castors h 128 mm
  • EN drawer reduction kit for GN containers
  • Brackets for GN pans for drawer
  • GN1/2 container + lids kit for drawer, h 150 mm
  • GN1/3 container + lids kit for drawer, h 150 mm
  • Stainless steel shelf EN60x40
  • Plastic coated shelf EN60x40
  • Pair of type L slides 605 mm
  • Serial interface, RS485 cable
  • Cosmo cable connection kit
  • IP44 schuko socket with cover
  • Prep-Station pans kit GN1/3 plug-in, 4D EN
  • Removable plinth EN 4D h 50 mm
  • Removable plinth EN 4D h 100 mm
  • Removable plinth EN 4D h 150 mm

Variants

  • Drawers 1/2
  • Drawers 1/3
  • Drawers 1/3 + 2/3
  • Special counter body heights 700 mm
  • Special counter body heights 750 mm
  • Technical compartment on the left
  • Special size of technical compartment
  • Lock with key for drawer 1/2
  • Lock with key for drawer 1/3
  • Lock with key for drawer 1/3 + 2/3
  • LED lighting
  • RAL customisable colouring
  • Plug-in water unit
  • Alimentazione frequenza 60Hz
  • Other special voltage

TVG21/1MZ-1/3-760

Features

  • Standard equipment 4 slides, 4 plastic coated EN60x40 shelves
  • Control Electronic, display flush with the panel
  • Doors 4 doors, self-closing, reversible with 105° stop
  • Door gasket Magnetic, triple chamber and easily replaceable
  • Insulation 60 mm thickness - CFC/HCFC free
  • Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
  • Inner corners Rounded for easy cleaning and ensuring maximum hygiene
  • Handle Stainless steel AISI 304, 2 mm thick
  • Racks and slides Stainless steel AISI 304
  • Top With top
  • Feets AISI 304 stainless steel adjustable h 100/150 mm

Constructive Data

  • Gross capacity 894 lt
  • Temperature range -2°+8°C
  • Refrigerant unit Plug-in
  • Cooling gas R290
  • Defrost Hot gas
  • Body height 760 mm
  • Valve Supplied standard with solenoid
  • Dimensions 2560×800×1055 mm
  • Packing dimensions 2655×900×998 mm
  • Gross weight 267 Kg
  • Voltage 220-240 V - 50 Hz
  • Total rate 250 W
  • Absorbed Current 1,15 A
  • Cooling capacity 406 W*
  • * Evap. -10°C Cond. +55°C

Accessories

  • Adjustable feet h 145/195 mm
  • 6 Swivel and brake castors h 128 mm
  • EN drawer reduction kit for GN containers
  • Brackets for GN pans for drawer
  • GN1/2 container + lids kit for drawer, h 150 mm
  • GN1/3 container + lids kit for drawer, h 150 mm
  • Stainless steel shelf EN60x40
  • Plastic coated shelf EN60x40
  • Pair of type L slides 605 mm
  • Serial interface, RS485 cable
  • Cosmo cable connection kit
  • IP44 schuko socket with cover
  • Prep-Station pans kit GN1/3 plug-in, 4D EN
  • Removable plinth EN 4D h 50 mm
  • Removable plinth EN 4D h 100 mm
  • Removable plinth EN 4D h 150 mm

Variants

  • Drawers 1/2
  • Drawers 1/3
  • Drawers 1/3 + 2/3
  • Special counter body heights 700 mm
  • Special counter body heights 750 mm
  • Technical compartment on the left
  • Special size of technical compartment
  • Lock with key for drawer 1/2
  • Lock with key for drawer 1/3
  • Lock with key for drawer 1/3 + 2/3
  • LED lighting
  • RAL customisable colouring
  • Plug-in water unit
  • Alimentazione frequenza 60Hz
  • Other special voltage

TV21/1MZ-1/3-760

Features

  • Standard equipment 4 slides, 4 plastic coated EN60x40 shelves
  • Control Electronic, display flush with the panel
  • Doors 4 doors, self-closing, reversible with 105° stop
  • Door gasket Magnetic, triple chamber and easily replaceable
  • Insulation 60 mm thickness - CFC/HCFC free
  • Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
  • Inner corners Rounded for easy cleaning and ensuring maximum hygiene
  • Handle Stainless steel AISI 304, 2 mm thick
  • Racks and slides Stainless steel AISI 304
  • Top With top
  • Feets AISI 304 stainless steel adjustable h 100/150 mm

Constructive Data

  • Gross capacity 894 lt
  • Temperature range -2°+8°C
  • Refrigerant unit Plug-in
  • Cooling gas R290
  • Defrost Hot gas
  • Body height 760 mm
  • Valve Supplied standard with solenoid
  • Dimensions 2560×800×1055 mm
  • Packing dimensions 2655×900×998 mm
  • Gross weight 252 Kg
  • Voltage 220-240 V - 50 Hz
  • Total rate 250 W
  • Absorbed Current 1,15 A
  • Cooling capacity 406 W*
  • * Evap. -10°C Cond. +55°C

Accessories

  • Adjustable feet h 145/195 mm
  • 6 Swivel and brake castors h 128 mm
  • EN drawer reduction kit for GN containers
  • Brackets for GN pans for drawer
  • GN1/2 container + lids kit for drawer, h 150 mm
  • GN1/3 container + lids kit for drawer, h 150 mm
  • Stainless steel shelf EN60x40
  • Plastic coated shelf EN60x40
  • Pair of type L slides 605 mm
  • Serial interface, RS485 cable
  • Cosmo cable connection kit
  • IP44 schuko socket with cover
  • Prep-Station pans kit GN1/3 plug-in, 4D EN
  • Removable plinth EN 4D h 50 mm
  • Removable plinth EN 4D h 100 mm
  • Removable plinth EN 4D h 150 mm

Variants

  • Drawers 1/2
  • Drawers 1/3
  • Drawers 1/3 + 2/3
  • Special counter body heights 700 mm
  • Special counter body heights 750 mm
  • Technical compartment on the left
  • Special size of technical compartment
  • Lock with key for drawer 1/2
  • Lock with key for drawer 1/3
  • Lock with key for drawer 1/3 + 2/3
  • LED lighting
  • RAL customisable colouring
  • Plug-in water unit
  • Alimentazione frequenza 60Hz
  • Other special voltage

TVG21/1MZ-1/6-710

Features

  • Standard equipment 4 slides, 4 plastic coated EN60x40 shelves
  • Control Electronic, display flush with the panel
  • Doors 4 doors, self-closing, reversible with 105° stop
  • Door gasket Magnetic, triple chamber and easily replaceable
  • Insulation 60 mm thickness - CFC/HCFC free
  • Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
  • Inner corners Rounded for easy cleaning and ensuring maximum hygiene
  • Handle Stainless steel AISI 304, 2 mm thick
  • Racks and slides Stainless steel AISI 304
  • Top With top
  • Feets AISI 304 stainless steel adjustable h 100/150 mm

Constructive Data

  • Gross capacity 825 lt
  • Temperature range -2°+8°C
  • Refrigerant unit Plug-in
  • Cooling gas R290
  • Defrost Hot gas
  • Body height 710 mm
  • Valve Supplied standard with solenoid
  • Dimensions 2560×800×1005 mm
  • Packing dimensions 2655×900×998 mm
  • Gross weight 245 Kg
  • Voltage 220-240 V - 50 Hz
  • Total rate 250 W
  • Absorbed Current 1,15 A
  • Cooling capacity 406 W*
  • * Evap. -10°C Cond. +55°C

Accessories

  • Adjustable feet h 145/195 mm
  • 6 Swivel and brake castors h 128 mm
  • EN drawer reduction kit for GN containers
  • Brackets for GN pans for drawer
  • GN1/2 container + lids kit for drawer, h 150 mm
  • GN1/3 container + lids kit for drawer, h 150 mm
  • Stainless steel shelf EN60x40
  • Plastic coated shelf EN60x40
  • Pair of type L slides 605 mm
  • Serial interface, RS485 cable
  • Cosmo cable connection kit
  • IP44 schuko socket with cover
  • Prep-Station pans kit GN1/6 plug-in, 4D EN
  • Removable plinth EN 4D h 50 mm
  • Removable plinth EN 4D h 100 mm
  • Removable plinth EN 4D h 150 mm

Variants

  • Drawers 1/2
  • Drawers 1/3
  • Drawers 1/3 + 2/3
  • Special counter body heights 700 mm
  • Special counter body heights 750 mm
  • Technical compartment on the left
  • Special size of technical compartment
  • Lock with key for drawer 1/2
  • Lock with key for drawer 1/3
  • Lock with key for drawer 1/3 + 2/3
  • LED lighting
  • RAL customisable colouring
  • Plug-in water unit
  • Alimentazione frequenza 60Hz
  • Other special voltage

TV21/1MZ-1/6-710

Features

  • Standard equipment 4 slides, 4 plastic coated EN60x40 shelves
  • Control Electronic, display flush with the panel
  • Doors 4 doors, self-closing, reversible with 105° stop
  • Door gasket Magnetic, triple chamber and easily replaceable
  • Insulation 60 mm thickness - CFC/HCFC free
  • Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
  • Inner corners Rounded for easy cleaning and ensuring maximum hygiene
  • Handle Stainless steel AISI 304, 2 mm thick
  • Racks and slides Stainless steel AISI 304
  • Top With top
  • Feets AISI 304 stainless steel adjustable h 100/150 mm

Constructive Data

  • Gross capacity 825 lt
  • Temperature range -2°+8°C
  • Refrigerant unit Plug-in
  • Cooling gas R290
  • Defrost Hot gas
  • Body height 710 mm
  • Valve Supplied standard with solenoid
  • Dimensions 2560×800×1005 mm
  • Packing dimensions 2655×900×998 mm
  • Gross weight 230 Kg
  • Voltage 220-240 V - 50 Hz
  • Total rate 250 W
  • Absorbed Current 1,15 A
  • Cooling capacity 406 W*
  • * Evap. -10°C Cond. +55°C

Accessories

  • Adjustable feet h 145/195 mm
  • 6 Swivel and brake castors h 128 mm
  • EN drawer reduction kit for GN containers
  • Brackets for GN pans for drawer
  • GN1/2 container + lids kit for drawer, h 150 mm
  • GN1/3 container + lids kit for drawer, h 150 mm
  • Stainless steel shelf EN60x40
  • Plastic coated shelf EN60x40
  • Pair of type L slides 605 mm
  • Serial interface, RS485 cable
  • Cosmo cable connection kit
  • IP44 schuko socket with cover
  • Prep-Station pans kit GN1/6 plug-in, 4D EN
  • Removable plinth EN 4D h 50 mm
  • Removable plinth EN 4D h 100 mm
  • Removable plinth EN 4D h 150 mm

Variants

  • Drawers 1/2
  • Drawers 1/3
  • Drawers 1/3 + 2/3
  • Special counter body heights 700 mm
  • Special counter body heights 750 mm
  • Technical compartment on the left
  • Special size of technical compartment
  • Lock with key for drawer 1/2
  • Lock with key for drawer 1/3
  • Lock with key for drawer 1/3 + 2/3
  • LED lighting
  • RAL customisable colouring
  • Plug-in water unit
  • Alimentazione frequenza 60Hz
  • Other special voltage

TVG21/1MZ-1/6-760

Features

  • Standard equipment 4 slides, 4 plastic coated EN60x40 shelves
  • Control Electronic, display flush with the panel
  • Doors 4 doors, self-closing, reversible with 105° stop
  • Door gasket Magnetic, triple chamber and easily replaceable
  • Insulation 60 mm thickness - CFC/HCFC free
  • Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
  • Inner corners Rounded for easy cleaning and ensuring maximum hygiene
  • Handle Stainless steel AISI 304, 2 mm thick
  • Racks and slides Stainless steel AISI 304
  • Top With top
  • Feets AISI 304 stainless steel adjustable h 100/150 mm

Constructive Data

  • Gross capacity 894 lt
  • Temperature range -2°+8°C
  • Refrigerant unit Plug-in
  • Cooling gas R290
  • Defrost Hot gas
  • Body height 760 mm
  • Valve Supplied standard with solenoid
  • Dimensions 2560×800×1055 mm
  • Packing dimensions 2655×900×998 mm
  • Gross weight 257 Kg
  • Voltage 220-240 V - 50 Hz
  • Total rate 250 W
  • Absorbed Current 1,15 A
  • Cooling capacity 406 W*
  • * Evap. -10°C Cond. +55°C

Accessories

  • Adjustable feet h 145/195 mm
  • 6 Swivel and brake castors h 128 mm
  • EN drawer reduction kit for GN containers
  • Brackets for GN pans for drawer
  • GN1/2 container + lids kit for drawer, h 150 mm
  • GN1/3 container + lids kit for drawer, h 150 mm
  • Stainless steel shelf EN60x40
  • Plastic coated shelf EN60x40
  • Pair of type L slides 605 mm
  • Serial interface, RS485 cable
  • Cosmo cable connection kit
  • IP44 schuko socket with cover
  • Prep-Station pans kit GN1/6 plug-in, 4D EN
  • Removable plinth EN 4D h 50 mm
  • Removable plinth EN 4D h 100 mm
  • Removable plinth EN 4D h 150 mm

Variants

  • Drawers 1/2
  • Drawers 1/3
  • Drawers 1/3 + 2/3
  • Special counter body heights 700 mm
  • Special counter body heights 750 mm
  • Technical compartment on the left
  • Special size of technical compartment
  • Lock with key for drawer 1/2
  • Lock with key for drawer 1/3
  • Lock with key for drawer 1/3 + 2/3
  • LED lighting
  • RAL customisable colouring
  • Plug-in water unit
  • Alimentazione frequenza 60Hz
  • Other special voltage

TV21/1MZ-1/6-760

Features

  • Standard equipment 4 slides, 4 plastic coated EN60x40 shelves
  • Control Electronic, display flush with the panel
  • Doors 4 doors, self-closing, reversible with 105° stop
  • Door gasket Magnetic, triple chamber and easily replaceable
  • Insulation 60 mm thickness - CFC/HCFC free
  • Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
  • Inner corners Rounded for easy cleaning and ensuring maximum hygiene
  • Handle Stainless steel AISI 304, 2 mm thick
  • Racks and slides Stainless steel AISI 304
  • Top With top
  • Feets AISI 304 stainless steel adjustable h 100/150 mm

Constructive Data

  • Gross capacity 894 lt
  • Temperature range -2°+8°C
  • Refrigerant unit Plug-in
  • Cooling gas R290
  • Defrost Hot gas
  • Body height 760 mm
  • Valve Supplied standard with solenoid
  • Dimensions 2560×800×1055 mm
  • Packing dimensions 2655×900×998 mm
  • Gross weight 242 Kg
  • Voltage 220-240 V - 50 Hz
  • Total rate 250 W
  • Absorbed Current 1,15 A
  • Cooling capacity 406 W*
  • * Evap. -10°C Cond. +55°C

Accessories

  • Adjustable feet h 145/195 mm
  • 6 Swivel and brake castors h 128 mm
  • EN drawer reduction kit for GN containers
  • Brackets for GN pans for drawer
  • GN1/2 container + lids kit for drawer, h 150 mm
  • GN1/3 container + lids kit for drawer, h 150 mm
  • Stainless steel shelf EN60x40
  • Plastic coated shelf EN60x40
  • Pair of type L slides 605 mm
  • Serial interface, RS485 cable
  • Cosmo cable connection kit
  • IP44 schuko socket with cover
  • Prep-Station pans kit GN1/6 plug-in, 4D EN
  • Removable plinth EN 4D h 50 mm
  • Removable plinth EN 4D h 100 mm
  • Removable plinth EN 4D h 150 mm

Variants

  • Drawers 1/2
  • Drawers 1/3
  • Drawers 1/3 + 2/3
  • Special counter body heights 700 mm
  • Special counter body heights 750 mm
  • Technical compartment on the left
  • Special size of technical compartment
  • Lock with key for drawer 1/2
  • Lock with key for drawer 1/3
  • Lock with key for drawer 1/3 + 2/3
  • LED lighting
  • RAL customisable colouring
  • Plug-in water unit
  • Alimentazione frequenza 60Hz
  • Other special voltage

Sign up to our newsletter

Stay up to date on all the news from the coldline world.
