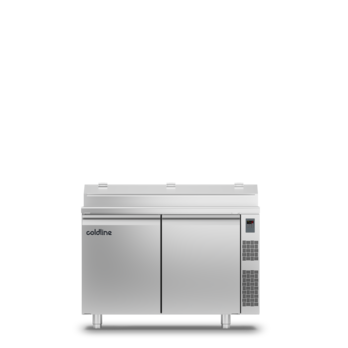

2 doors remote EN

TVG13/1MZR-1/3-710

Features

  • Standard equipment 2 slides, 2 plastic coated EN60x40 shelves
  • Control Electronic, display flush with the panel
  • Doors 2 doors, self-closing, reversible with 105° stop
  • Door gasket Magnetic, triple chamber and easily replaceable
  • Insulation 60 mm thickness - CFC/HCFC free
  • Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
  • Inner corners Rounded for easy cleaning and ensuring maximum hygiene
  • Handle Stainless steel AISI 304, 2 mm thick
  • Racks and slides Stainless steel AISI 304
  • Top With top
  • Feets AISI 304 stainless steel adjustable h 100/150 mm

Constructive Data

  • Gross capacity 389 lt
  • Temperature range -2°+8°C
  • Refrigerant unit remote
  • Cooling gas R452a
  • Defrost Electric
  • Body height 710 mm
  • Valve Supplied standard with solenoid
  • Dimensions 1240×800×1005 mm
  • Packing dimensions 1545×900×998 mm
  • Gross weight 150 Kg
  • Voltage 220-240 V - 50-60 Hz
  • Total rate 810 W
  • Absorbed Current 3,7 A
  • Cooling capacity 519 W*
  • * Evap. -10°C Cond. +55°C

Accessories

  • Remote condensing unit EMT6165GK
  • Adjustable feet h 145/195 mm
  • 4 Swivel and brake castors h 128 mm
  • EN drawer reduction kit for GN containers
  • Brackets for GN pans for drawer
  • GN1/2 container + lids kit for drawer, h 150 mm
  • GN1/3 container + lids kit for drawer, h 150 mm
  • Stainless steel shelf EN60x40
  • Plastic coated shelf EN60x40
  • Pair of type L slides 605 mm
  • Serial interface, RS485 cable
  • Cosmo cable connection kit
  • Prep-Station pans kit GN1/3 remote, 2D
  • Prep-Station pans kit GN1/3 remote, 2D EN
  • Removable plinth EN 2DR h 50 mm
  • Removable plinth EN 2DR h 100 mm
  • Removable plinth EN 2DR h 150 mm
  • R134a valve

Variants

  • Drawers 1/2
  • Drawers 1/3
  • Drawers 1/3 + 2/3
  • Special counter body heights 700 mm
  • Special counter body heights 750 mm
  • Technical compartment on the left
  • Common technical compartment
  • Special size of technical compartment
  • Lock with key for drawer 1/2
  • Lock with key for drawer 1/3
  • Lock with key for drawer 1/3 + 2/3
  • LED lighting
  • RAL customisable colouring
  • Predisposition for connection to CO2 remote control unit
  • Alimentazione frequenza 60Hz
  • Other special voltage

TV13/1MZR-1/3-710

Features

  • Standard equipment 2 slides, 2 plastic coated EN60x40 shelves
  • Control Electronic, display flush with the panel
  • Doors 2 doors, self-closing, reversible with 105° stop
  • Door gasket Magnetic, triple chamber and easily replaceable
  • Insulation 60 mm thickness - CFC/HCFC free
  • Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
  • Inner corners Rounded for easy cleaning and ensuring maximum hygiene
  • Handle Stainless steel AISI 304, 2 mm thick
  • Racks and slides Stainless steel AISI 304
  • Top With top
  • Feets AISI 304 stainless steel adjustable h 100/150 mm

Constructive Data

  • Gross capacity 389 lt
  • Temperature range -2°+8°C
  • Refrigerant unit remote
  • Cooling gas R452a
  • Defrost Electric
  • Body height 710 mm
  • Valve Supplied standard with solenoid
  • Dimensions 1240×800×1005 mm
  • Packing dimensions 1545×900×998 mm
  • Gross weight 135 Kg
  • Voltage 220-240 V - 50-60 Hz
  • Total rate 810 W
  • Absorbed Current 3,7 A
  • Cooling capacity 519 W*
  • * Evap. -10°C Cond. +55°C

Accessories

  • Remote condensing unit EMT6165GK
  • Adjustable feet h 145/195 mm
  • 4 Swivel and brake castors h 128 mm
  • EN drawer reduction kit for GN containers
  • Brackets for GN pans for drawer
  • GN1/2 container + lids kit for drawer, h 150 mm
  • GN1/3 container + lids kit for drawer, h 150 mm
  • Stainless steel shelf EN60x40
  • Plastic coated shelf EN60x40
  • Pair of type L slides 605 mm
  • Serial interface, RS485 cable
  • Cosmo cable connection kit
  • Prep-Station pans kit GN1/3 remote, 2D
  • Prep-Station pans kit GN1/3 remote, 2D EN
  • Removable plinth EN 2DR h 50 mm
  • Removable plinth EN 2DR h 100 mm
  • Removable plinth EN 2DR h 150 mm
  • R134a valve

Variants

  • Drawers 1/2
  • Drawers 1/3
  • Drawers 1/3 + 2/3
  • Special counter body heights 700 mm
  • Special counter body heights 750 mm
  • Technical compartment on the left
  • Common technical compartment
  • Special size of technical compartment
  • Lock with key for drawer 1/2
  • Lock with key for drawer 1/3
  • Lock with key for drawer 1/3 + 2/3
  • LED lighting
  • RAL customisable colouring
  • Predisposition for connection to CO2 remote control unit
  • Alimentazione frequenza 60Hz
  • Other special voltage

TVG13/1MZR-1/3-760

Features

  • Standard equipment 2 slides, 2 plastic coated EN60x40 shelves
  • Control Electronic, display flush with the panel
  • Doors 2 doors, self-closing, reversible with 105° stop
  • Door gasket Magnetic, triple chamber and easily replaceable
  • Insulation 60 mm thickness - CFC/HCFC free
  • Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
  • Inner corners Rounded for easy cleaning and ensuring maximum hygiene
  • Handle Stainless steel AISI 304, 2 mm thick
  • Racks and slides Stainless steel AISI 304
  • Top With top
  • Feets AISI 304 stainless steel adjustable h 100/150 mm

Constructive Data

  • Gross capacity 421 lt
  • Temperature range -2°+8°C
  • Refrigerant unit remote
  • Cooling gas R452a
  • Defrost Electric
  • Body height 760 mm
  • Valve Supplied standard with solenoid
  • Dimensions 1240×800×1055 mm
  • Packing dimensions 1545×900×998 mm
  • Gross weight 156 Kg
  • Voltage 220-240 V - 50-60 Hz
  • Total rate 810 W
  • Absorbed Current 3,7 A
  • Cooling capacity 519 W*
  • * Evap. -10°C Cond. +55°C

Accessories

  • Remote condensing unit EMT6165GK
  • Adjustable feet h 145/195 mm
  • 4 Swivel and brake castors h 128 mm
  • EN drawer reduction kit for GN containers
  • Brackets for GN pans for drawer
  • GN1/2 container + lids kit for drawer, h 150 mm
  • GN1/3 container + lids kit for drawer, h 150 mm
  • Stainless steel shelf EN60x40
  • Plastic coated shelf EN60x40
  • Pair of type L slides 605 mm
  • Serial interface, RS485 cable
  • Cosmo cable connection kit
  • Prep-Station pans kit GN1/3 remote, 2D
  • Prep-Station pans kit GN1/3 remote, 2D EN
  • Removable plinth EN 2DR h 50 mm
  • Removable plinth EN 2DR h 100 mm
  • Removable plinth EN 2DR h 150 mm
  • R134a valve

Variants

  • Drawers 1/2
  • Drawers 1/3
  • Drawers 1/3 + 2/3
  • Special counter body heights 700 mm
  • Special counter body heights 750 mm
  • Technical compartment on the left
  • Common technical compartment
  • Special size of technical compartment
  • Lock with key for drawer 1/2
  • Lock with key for drawer 1/3
  • Lock with key for drawer 1/3 + 2/3
  • LED lighting
  • RAL customisable colouring
  • Predisposition for connection to CO2 remote control unit
  • Alimentazione frequenza 60Hz
  • Other special voltage

TV13/1MZR-1/3-760

Features

  • Standard equipment 2 slides, 2 plastic coated EN60x40 shelves
  • Control Electronic, display flush with the panel
  • Doors 2 doors, self-closing, reversible with 105° stop
  • Door gasket Magnetic, triple chamber and easily replaceable
  • Insulation 60 mm thickness - CFC/HCFC free
  • Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
  • Inner corners Rounded for easy cleaning and ensuring maximum hygiene
  • Handle Stainless steel AISI 304, 2 mm thick
  • Racks and slides Stainless steel AISI 304
  • Top With top
  • Feets AISI 304 stainless steel adjustable h 100/150 mm

Constructive Data

  • Gross capacity 421 lt
  • Temperature range -2°+8°C
  • Refrigerant unit remote
  • Cooling gas R452a
  • Defrost Electric
  • Body height 760 mm
  • Valve Supplied standard with solenoid
  • Dimensions 1240×800×1055 mm
  • Packing dimensions 1545×900×998 mm
  • Gross weight 141 Kg
  • Voltage 220-240 V - 50-60 Hz
  • Total rate 810 W
  • Absorbed Current 3,7 A
  • Cooling capacity 519 W*
  • * Evap. -10°C Cond. +55°C

Accessories

  • Remote condensing unit EMT6165GK
  • Adjustable feet h 145/195 mm
  • 4 Swivel and brake castors h 128 mm
  • EN drawer reduction kit for GN containers
  • Brackets for GN pans for drawer
  • GN1/2 container + lids kit for drawer, h 150 mm
  • GN1/3 container + lids kit for drawer, h 150 mm
  • Stainless steel shelf EN60x40
  • Plastic coated shelf EN60x40
  • Pair of type L slides 605 mm
  • Serial interface, RS485 cable
  • Cosmo cable connection kit
  • Prep-Station pans kit GN1/3 remote, 2D
  • Prep-Station pans kit GN1/3 remote, 2D EN
  • Removable plinth EN 2DR h 50 mm
  • Removable plinth EN 2DR h 100 mm
  • Removable plinth EN 2DR h 150 mm
  • R134a valve

Variants

  • Drawers 1/2
  • Drawers 1/3
  • Drawers 1/3 + 2/3
  • Special counter body heights 700 mm
  • Special counter body heights 750 mm
  • Technical compartment on the left
  • Common technical compartment
  • Special size of technical compartment
  • Lock with key for drawer 1/2
  • Lock with key for drawer 1/3
  • Lock with key for drawer 1/3 + 2/3
  • LED lighting
  • RAL customisable colouring
  • Predisposition for connection to CO2 remote control unit
  • Alimentazione frequenza 60Hz
  • Other special voltage

TV13/1MZR-1/6-710

Features

  • Standard equipment 2 slides, 2 plastic coated EN60x40 shelves
  • Control Electronic, display flush with the panel
  • Doors 2 doors, self-closing, reversible with 105° stop
  • Door gasket Magnetic, triple chamber and easily replaceable
  • Insulation 60 mm thickness - CFC/HCFC free
  • Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
  • Inner corners Rounded for easy cleaning and ensuring maximum hygiene
  • Handle Stainless steel AISI 304, 2 mm thick
  • Racks and slides Stainless steel AISI 304
  • Top With top
  • Feets AISI 304 stainless steel adjustable h 100/150 mm

Constructive Data

  • Gross capacity 389 lt
  • Temperature range -2°+8°C
  • Refrigerant unit remote
  • Cooling gas R452a
  • Defrost Electric
  • Body height 710 mm
  • Valve Supplied standard with solenoid
  • Dimensions 1240×800×1005 mm
  • Packing dimensions 1545×900×998 mm
  • Gross weight 125 Kg
  • Voltage 220-240 V - 50-60 Hz
  • Total rate 810 W
  • Absorbed Current 3,7 A
  • Cooling capacity 519 W*
  • * Evap. -10°C Cond. +55°C

Accessories

  • Remote condensing unit EMT6165GK
  • Adjustable feet h 145/195 mm
  • 4 Swivel and brake castors h 128 mm
  • EN drawer reduction kit for GN containers
  • Brackets for GN pans for drawer
  • GN1/2 container + lids kit for drawer, h 150 mm
  • GN1/3 container + lids kit for drawer, h 150 mm
  • Stainless steel shelf EN60x40
  • Plastic coated shelf EN60x40
  • Pair of type L slides 605 mm
  • Serial interface, RS485 cable
  • Cosmo cable connection kit
  • Prep-Station pans kit GN1/6 remote, 2D
  • Prep-Station pans kit GN1/6 remote, 2D EN
  • Removable plinth EN 2DR h 50 mm
  • Removable plinth EN 2DR h 100 mm
  • Removable plinth EN 2DR h 150 mm
  • R134a valve

Variants

  • Drawers 1/2
  • Drawers 1/3
  • Drawers 1/3 + 2/3
  • Special counter body heights 700 mm
  • Special counter body heights 750 mm
  • Technical compartment on the left
  • Common technical compartment
  • Special size of technical compartment
  • Lock with key for drawer 1/2
  • Lock with key for drawer 1/3
  • Lock with key for drawer 1/3 + 2/3
  • LED lighting
  • RAL customisable colouring
  • Predisposition for connection to CO2 remote control unit
  • Alimentazione frequenza 60Hz
  • Other special voltage

TVG13/1MZR-1/6-710

Features

  • Standard equipment 2 slides, 2 plastic coated EN60x40 shelves
  • Control Electronic, display flush with the panel
  • Doors 2 doors, self-closing, reversible with 105° stop
  • Door gasket Magnetic, triple chamber and easily replaceable
  • Insulation 60 mm thickness - CFC/HCFC free
  • Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
  • Inner corners Rounded for easy cleaning and ensuring maximum hygiene
  • Handle Stainless steel AISI 304, 2 mm thick
  • Racks and slides Stainless steel AISI 304
  • Top With top
  • Feets AISI 304 stainless steel adjustable h 100/150 mm

Constructive Data

  • Gross capacity 389 lt
  • Temperature range -2°+8°C
  • Refrigerant unit remote
  • Cooling gas R452a
  • Defrost Electric
  • Body height 710 mm
  • Valve Supplied standard with solenoid
  • Dimensions 1240×800×1005 mm
  • Packing dimensions 1545×900×998 mm
  • Gross weight 140 Kg
  • Voltage 220-240 V - 50-60 Hz
  • Total rate 810 W
  • Absorbed Current 3,7 A
  • Cooling capacity 519 W*
  • * Evap. -10°C Cond. +55°C

Accessories

  • Remote condensing unit EMT6165GK
  • Adjustable feet h 145/195 mm
  • 4 Swivel and brake castors h 128 mm
  • EN drawer reduction kit for GN containers
  • Brackets for GN pans for drawer
  • GN1/2 container + lids kit for drawer, h 150 mm
  • GN1/3 container + lids kit for drawer, h 150 mm
  • Stainless steel shelf EN60x40
  • Plastic coated shelf EN60x40
  • Pair of type L slides 605 mm
  • Serial interface, RS485 cable
  • Cosmo cable connection kit
  • Prep-Station pans kit GN1/6 remote, 2D
  • Prep-Station pans kit GN1/6 remote, 2D EN
  • Removable plinth EN 2DR h 50 mm
  • Removable plinth EN 2DR h 100 mm
  • Removable plinth EN 2DR h 150 mm
  • R134a valve

Variants

  • Drawers 1/2
  • Drawers 1/3
  • Drawers 1/3 + 2/3
  • Special counter body heights 700 mm
  • Special counter body heights 750 mm
  • Technical compartment on the left
  • Common technical compartment
  • Special size of technical compartment
  • Lock with key for drawer 1/2
  • Lock with key for drawer 1/3
  • Lock with key for drawer 1/3 + 2/3
  • LED lighting
  • RAL customisable colouring
  • Predisposition for connection to CO2 remote control unit
  • Alimentazione frequenza 60Hz
  • Other special voltage

TVG13/1MZR-1/6-760

Features

  • Standard equipment 2 slides, 2 plastic coated EN60x40 shelves
  • Control Electronic, display flush with the panel
  • Doors 2 doors, self-closing, reversible with 105° stop
  • Door gasket Magnetic, triple chamber and easily replaceable
  • Insulation 60 mm thickness - CFC/HCFC free
  • Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
  • Inner corners Rounded for easy cleaning and ensuring maximum hygiene
  • Handle Stainless steel AISI 304, 2 mm thick
  • Racks and slides Stainless steel AISI 304
  • Top With top
  • Feets AISI 304 stainless steel adjustable h 100/150 mm

Constructive Data

  • Gross capacity 421 lt
  • Temperature range -2°+8°C
  • Refrigerant unit remote
  • Cooling gas R452a
  • Defrost Electric
  • Body height 760 mm
  • Valve Supplied standard with solenoid
  • Dimensions 1240×800×1055 mm
  • Packing dimensions 1545×900×998 mm
  • Gross weight 146 Kg
  • Voltage 220-240 V - 50-60 Hz
  • Total rate 810 W
  • Absorbed Current 3,7 A
  • Cooling capacity 519 W*
  • * Evap. -10°C Cond. +55°C

Accessories

  • Remote condensing unit EMT6165GK
  • Adjustable feet h 145/195 mm
  • 4 Swivel and brake castors h 128 mm
  • EN drawer reduction kit for GN containers
  • Brackets for GN pans for drawer
  • GN1/2 container + lids kit for drawer, h 150 mm
  • GN1/3 container + lids kit for drawer, h 150 mm
  • Stainless steel shelf EN60x40
  • Plastic coated shelf EN60x40
  • Pair of type L slides 605 mm
  • Serial interface, RS485 cable
  • Cosmo cable connection kit
  • Prep-Station pans kit GN1/6 remote, 2D
  • Prep-Station pans kit GN1/6 remote, 2D EN
  • Removable plinth EN 2DR h 50 mm
  • Removable plinth EN 2DR h 100 mm
  • Removable plinth EN 2DR h 150 mm
  • R134a valve

Variants

  • Drawers 1/2
  • Drawers 1/3
  • Drawers 1/3 + 2/3
  • Special counter body heights 700 mm
  • Special counter body heights 750 mm
  • Technical compartment on the left
  • Common technical compartment
  • Special size of technical compartment
  • Lock with key for drawer 1/2
  • Lock with key for drawer 1/3
  • Lock with key for drawer 1/3 + 2/3
  • LED lighting
  • RAL customisable colouring
  • Predisposition for connection to CO2 remote control unit
  • Alimentazione frequenza 60Hz
  • Other special voltage

TV13/1MZR-1/6-760

Features

  • Standard equipment 2 slides, 2 plastic coated EN60x40 shelves
  • Control Electronic, display flush with the panel
  • Doors 2 doors, self-closing, reversible with 105° stop
  • Door gasket Magnetic, triple chamber and easily replaceable
  • Insulation 60 mm thickness - CFC/HCFC free
  • Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
  • Inner corners Rounded for easy cleaning and ensuring maximum hygiene
  • Handle Stainless steel AISI 304, 2 mm thick
  • Racks and slides Stainless steel AISI 304
  • Top With top
  • Feets AISI 304 stainless steel adjustable h 100/150 mm

Constructive Data

  • Gross capacity 421 lt
  • Temperature range -2°+8°C
  • Refrigerant unit remote
  • Cooling gas R452a
  • Defrost Electric
  • Body height 760 mm
  • Valve Supplied standard with solenoid
  • Dimensions 1240×800×1055 mm
  • Packing dimensions 1545×900×998 mm
  • Gross weight 131 Kg
  • Voltage 220-240 V - 50-60 Hz
  • Total rate 810 W
  • Absorbed Current 3,7 A
  • Cooling capacity 519 W*
  • * Evap. -10°C Cond. +55°C

Accessories

  • Remote condensing unit EMT6165GK
  • Adjustable feet h 145/195 mm
  • 4 Swivel and brake castors h 128 mm
  • EN drawer reduction kit for GN containers
  • Brackets for GN pans for drawer
  • GN1/2 container + lids kit for drawer, h 150 mm
  • GN1/3 container + lids kit for drawer, h 150 mm
  • Stainless steel shelf EN60x40
  • Plastic coated shelf EN60x40
  • Pair of type L slides 605 mm
  • Serial interface, RS485 cable
  • Cosmo cable connection kit
  • Prep-Station pans kit GN1/6 remote, 2D
  • Prep-Station pans kit GN1/6 remote, 2D EN
  • Removable plinth EN 2DR h 50 mm
  • Removable plinth EN 2DR h 100 mm
  • Removable plinth EN 2DR h 150 mm
  • R134a valve

Variants

  • Drawers 1/2
  • Drawers 1/3
  • Drawers 1/3 + 2/3
  • Special counter body heights 700 mm
  • Special counter body heights 750 mm
  • Technical compartment on the left
  • Common technical compartment
  • Special size of technical compartment
  • Lock with key for drawer 1/2
  • Lock with key for drawer 1/3
  • Lock with key for drawer 1/3 + 2/3
  • LED lighting
  • RAL customisable colouring
  • Predisposition for connection to CO2 remote control unit
  • Alimentazione frequenza 60Hz
  • Other special voltage

Sign up to our newsletter

Stay up to date on all the news from the coldline world.
